Alumet Stage II / ALUMET ST SPOT 4L105MAX 32° 830

96275342

Data Sheet

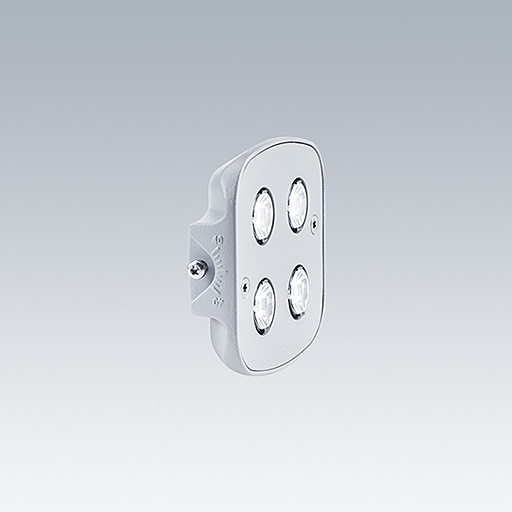

LED spot module for Alumet Stage II LED. With 32° beam, warm white.

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:925 lm
  • Luminaire efficacy*:66 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Rated useful life (B10)*:L80 100000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:14 W
  • Dimming:FO

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
