FleXity / <FLEX 24L50-740 WSC-S CL2 W5 T60 ANT

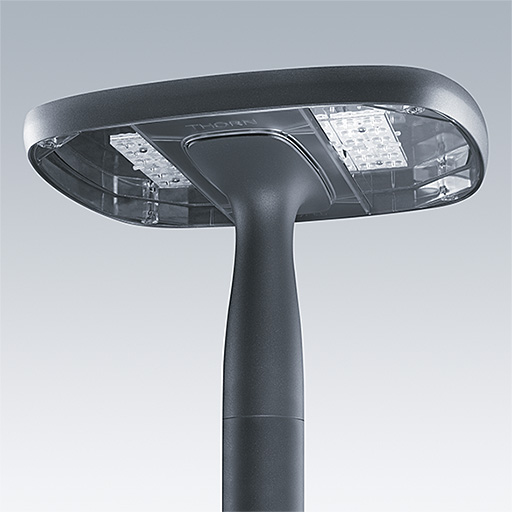

A modern, discreet and versatile post top LED lantern with a symmetric distribution. LED driver Programmable driving 24 LEDs at 500mA. Class II electrical, IP66, IK09. Canopy and base: die-cast aluminium (EN AC-46100) powder coated dark grey (close to RAL7043). Enclosure: clear polycarbonate. Complete with 4000K LED. Post top mounting to Ø60mm column, maximum spigot length 75mm. Pre-wired with 5m cable.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 370 x 430 x 290 mm
Luminaire input power: 40 W
Luminaire luminous flux: 4769 lm
Luminaire efficacy: 119 lm/W
Weight: 4.5 kg
Scx: 0.038 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:4769 lm
• Luminaire efficacy*:119 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 96277221 DRV OS OT 75W 1.05A 115V D #4DIMLT2 G2 C
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L90 100000h at 25°C
• Luminaire input power*:40 W Power factor = 0.95
• Dimming:PROG
