Thorn’s versatile luminaires create well-lit spaces at King’s Stables RoadSmart, sophisticated architectural urban lighting designed by Wilmotte

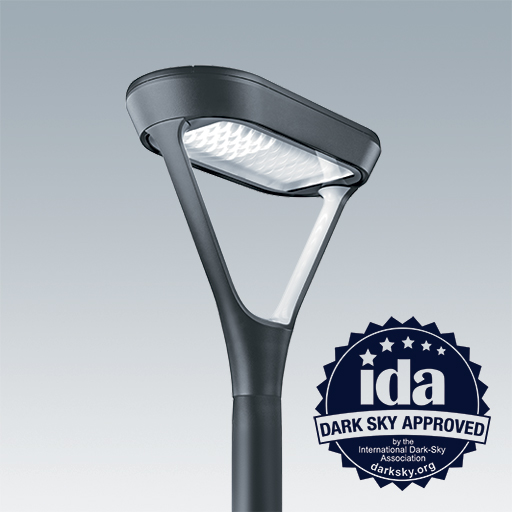

- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
- Unique architectural shape with a sophisticated light signature
- Comfort lighting with Prismatic filter or louver
- High versatility with a choice of five mounting options and wide choice of light distributions
- Tool-free maintenance
- Zd4i certified on request
- Part of the URBA family: URBA, URBA DECO and URBA bollard
Materials and Finish
Canopy and base: die cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black close to RAL 9005. Via the configurator: Texturized anthracite (ANT) and 48 other RAL possibilities.
Glass: 6mm thick clear or prismatic glass
Arms: die cast aluminium textured black close to RAL 9005, covered with a white or black (ULOR 0) shield in plastic ASA
Installation and Mounting
Post top, catenary, suspension and wall mounting. Recommended mounting height: post top 3 to 6m, suspended 3 to 8m, catenary 5 to 8m. Post Top: mounting on spigot/columns Ø60mm or Ø76mm: with 2 screws. Easy maintenance with tool free opening from above. Pre-wired, supplied complete and ready to install, in a single box. Catenary and suspension: fixing through 34G, maintenance with access from below. Dedicated columns and brackets available.
Specification
To specify state:
Decorative LED lantern with an unique lighting signature. Covers many applications with post top, suspended and catenary variants. Wide optical offer with a comfort prismatic variant and no upward lighting emissions, ULOR 0. Dimming with DALI2, Bi-power, Connectivity with Zhaga interface. Collection of dedicated mounting supports.
Part of the URBA family.
As Thorn Urba Deco.
▼ Urba Deco, post top
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-S CL1 WS1 T60T BK | 19 | 2808 | LED | 7.14 | 96670050 | ||||
| UD 24L25-730 WSC-S CL2 WS1 T60T BK | 19 | 2808 | LED | 7.10 | 96670049 | ||||
| UD 24L35-730 WSC-S CL1 WS1 T60T BK | 26 | 3794 | LED | 7.14 | 96277181 | ||||
| UD 24L35-730 WSC-S CL2 WS1 T60T BK | 26 | 3794 | LED | 7.10 | 96275689 | ||||
| UD 24L50-730 WSC-S CL1 WS1 T60T BK | 36 | 5191 | LED | 7.14 | 96670052 | ||||
| UD 24L50-730 WSC-S CL2 WS1 T60T BK | 36 | 5191 | LED | 7.10 | 96670051 | ||||
| UD 24L70-730 WSC-S CL1 WS1 T60T BK | 51 | 6889 | LED | 7.14 | 96277182 | ||||
| UD 24L70-730 WSC-S CL2 WS1 T60T BK | 51 | 6889 | LED | 7.10 | 96275690 | ||||
| UD 48L35-730 WSC-S CL1 WS1 T60T BK | 49 | 7532 | LED | 7.29 | 96277184 | ||||
| UD 48L35-730 WSC-S CL2 WS1 T60T BK | 49 | 7532 | LED | 7.25 | 96275692 | ||||
| UD 48L50-730 WSC-S CL1 WS1 T60T BK | 70 | 10264 | LED | 7.29 | 96277185 | ||||
| UD 48L50-730 WSC-S CL2 WS1 T60T BK | 70 | 10264 | LED | 7.25 | 96275693 |
▼ Urba Deco, suspended
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25-730 WSC-S CL1 WS1 MSU-T BK U0 | 19 | 2912 | LED | 6.38 | 96670054 | ||||
| UD 24L25-730 WSC-S CL2 WS1 MSU-T BK U0 | 19 | 2912 | LED | 6.33 | 96670053 | ||||
| UD 24L35-730 WSC-S CL1 WS1 MSU-T BK U0 | 26 | 3934 | LED | 6.38 | 96279216 | ||||
| UD 24L35-730 WSC-S CL2 WS1 MSU-T BK U0 | 26 | 3934 | LED | 6.33 | 96279215 | ||||
| UD 24L50-730 EWC CL2 HFX WS5 MSU-T BK U0 | 36 | 5382 | LED | 7.07 | 96670239 | ||||
| UD 24L50-730 WSC CL2 WS1 MSU-L BK U0 | 36 | 5382 | LED | 6.35 | 96670240 | ||||
| UD 24L50-730 WSC-S CL1 WS1 MSU-T BK U0 | 36 | 5382 | LED | 6.38 | 96279218 | ||||
| UD 24L50-730 WSC-S CL2 WS1 MSU-T BK U0 | 36 | 5382 | LED | 6.33 | 96279217 | ||||
| UD 24L70-730 WSC-S CL1 WS1 MSU-T BK U0 | 51 | 7143 | LED | 6.38 | 96279220 | ||||
| UD 24L70-730 WSC-S CL2 WS1 MSU-T BK U0 | 51 | 7143 | LED | 6.33 | 96279219 | ||||
| UD 48L35-730 WSC-S CL1 WS1 MSU-T BK U0 | 49 | 7810 | LED | 6.53 | 96279226 | ||||
| UD 48L35-730 WSC-S CL2 WS1 MSU-T BK U0 | 49 | 7810 | LED | 6.48 | 96279225 | ||||
| UD 48L50-730 WSC-S CL1 WS1 MSU-T BK U0 | 70 | 10642 | LED | 6.53 | 96279228 | ||||
| UD 48L50-730 WSC-S CL2 WS1 MSU-T BK U0 | 70 | 10642 | LED | 6.48 | 96279227 |
▼ Urba Deco, catenary
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50-730 WSC-S CL1 WS1 MCA-T BK U0 | 37 | 5066 | LED | 7.12 | 96279234 | ||||
| UD 24L50-730 WSC-S CL2 WS1 MCA-T BK U0 | 37 | 5066 | LED | 7.07 | 96279233 | ||||
| UD 48L50-730 WSC-S CL1 WS1 MCA-T BK U0 | 70 | 10016 | LED | 7.27 | 96279244 | ||||
| UD 48L50-730 WSC-S CL2 WS1 MCA-T BK U0 | 70 | 10016 | LED | 7.22 | 96279243 |
▼ Urba Deco Columns and brackets
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| UD MTP COL 4.5M ST D60 BK MPL FAI | 40.00 | 96273386 | |||||||
| UD MTP COL 4M ST D60 BK MPL FAI | 36.50 | 96273385 | |||||||
| UD MWA BRA 0.40M ST BK | 3.45 | 96274360 | |||||||
| UD MWA BRA MTP ST BK | 4.05 | 96273942 |
