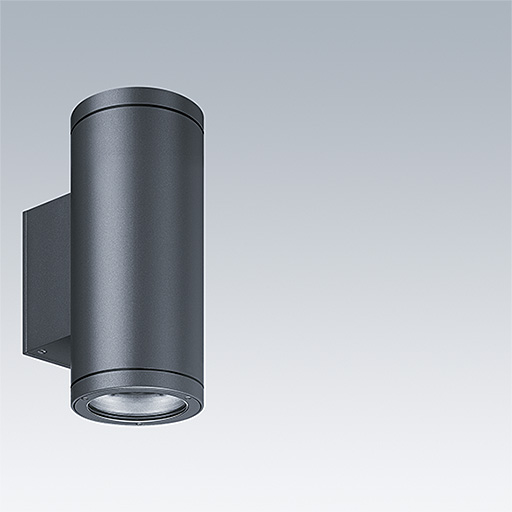

Cesar Wall
Versatile and contemporary architectural floodlight for decorative façade lighting
- Wall mounted luminaire available with 2 light distributions Narrow or medium beam, on one or two sides. Available in 2 sizes for easy integration into any environment
- Easy installation with a single tool and automatic connection
- Also available as a ceiling variant with Cesar Ceiling range
Materials and Finish
Body and frame: die-cast aluminium EN AN 44700 and extruded ENAW 6060 housing (copper free) with high corrosion resistance and powder painted close to RAL 7043. Other RAL colours available on request.
Front glass: toughened glass, thickness 8mm
Retaining screws: stainless steel
Gasket: silicone
Holographic films: non-yellowing polycarbonate
Installation and Mounting
Upwards or downwards installation. Fix the plate to the wall with screws (not supplied). Connect the supply cable to the fast connector IP67 (supplied). Plug the fast connector and lock with the two Allen screws. Fast connectors for electrical connection, cable diameters: Size 1: 8-12mm; Sizes 2: 6-12mm
Accessories:
You can add holographic films under the glass with the structured side of the film in contact with the front glass. Rotate the film to obtain the required light effect.
Specification
To specify state:

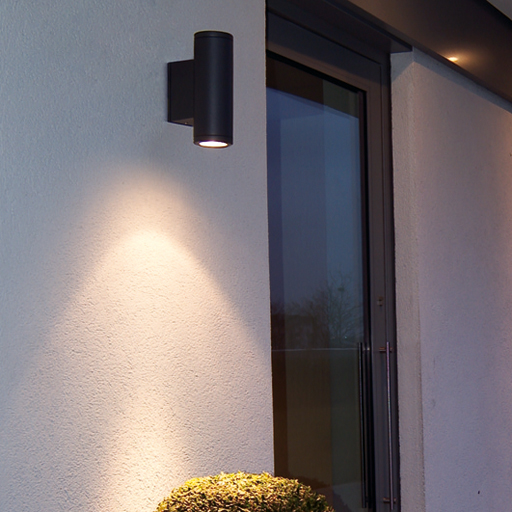

Elegant and universal wall mounted luminaires for wall or façade decorative lighting. Available in 2 sizes, narrow or medium beam, one or two windows, IP65 protected, gear integrated. Size 1: Ø90mm; Size 2: Ø140mm
As Thorn Cesar Wall
▼ Cesar Wall 90, 1 window
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR W 90 3L50 860 MB | 6 | 467 | LED | 1.50 | 96632336 | ||||
| CESAR W 90 3L50 860 NB | 6 | 544 | LED | 1.50 | 96231435 | ||||
| CESAR W 90 3L50 927 MB | 6 | 347 | LED | 1.50 | 96632333 | ||||
| CESAR W 90 3L50 927 NB | 6 | 383 | LED | 1.50 | 96632329 | ||||
| CESAR W 90 3L50 930 MB | 6 | 374 | LED | 1.50 | 96632334 | ||||
| CESAR W 90 3L50 930 NB | 6 | 409 | LED | 1.50 | 96260451 | ||||
| CESAR W 90 3L50 940 MB | 6 | 403 | LED | 1.50 | 96632335 | ||||
| CESAR W 90 3L50 940 NB | 6 | 445 | LED | 1.50 | 96632330 |
▼ Cesar Wall 90, 2 windows
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR W 90 2X3L50 860 MB | 12 | 467 | LED | 1.80 | 96632340 | ||||
| CESAR W 90 2X3L50 860 NB | 12 | 544 | LED | 1.94 | 96231452 | ||||
| CESAR W 90 2X3L50 927 MB | 12 | 347 | LED | 1.80 | 96632337 | ||||
| CESAR W 90 2X3L50 927 NB | 1.80 | 96632331 | |||||||
| CESAR W 90 2X3L50 930 MB | 12 | 374 | LED | 1.80 | 96632338 | ||||
| CESAR W 90 2X3L50 930 NB | 12 | 409 | LED | 2.29 | 96260452 | ||||
| CESAR W 90 2X3L50 940 MB | 12 | 403 | LED | 1.80 | 96632339 | ||||
| CESAR W 90 2X3L50 940 NB | 12 | 445 | LED | 1.80 | 96632332 |
▼ Cesar Wall 140, 1 window
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR W 140 5L90 927 MB | 16 | 879 | LED | 3.20 | 96632341 | ||||
| CESAR W 140 5L90 930 MB | 16 | 955 | LED | 3.20 | 96632342 | ||||
| CESAR W 140 5L90 940 MB | 16 | 1044 | LED | 3.20 | 96632343 |
▼ Cesar Wall 140, 2 windows
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <CESAR W 140 2X5L90 927 MB | 32 | 879 | LED | 4.70 | 96632344 | ||||
| CESAR W 140 2X5L90 930 MB | 32 | 955 | LED | 4.70 | 96632345 | ||||
| CESAR W 140 2X5L90 940 MB | 32 | 1044 | LED | 4.70 | 96632346 |
