Piazza II LED

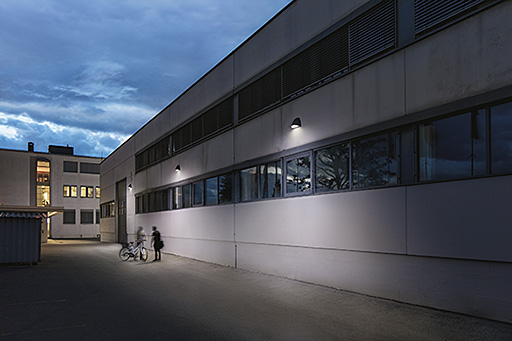

A robust IP65 outdoor wall mounted luminaire with a unique light distribution, ideal for building perimiter applications
- Unique photometrics with 3 metre forward light throw and 12 metre spacing - ideal for perimeter walkways
- Very low upward light throw with less than 2.5% ULOR
- Excellent 116 lm/W efficiency
- Easy installation, back mounted, BESA and surface mounted conduit compatible
Materials and Finish
Back-plate: die-cast aluminium painted anthracite (RAL7016)
Body: polycarbonate In anthracite colour (RAL 7016)
Diffuser: textured clear polycarbonate
Installation and Mounting
Wall mountable. Ø20 mm cable entry via rear or side conduit entries. Recommended 3-4 metre mounting height.
Specification
To specify state:
IP65, IK10 vandal resistant wall mounting luminaire in anthracite (RAL 7016) with less than 2.5% ULOR. In polycarbonate body & cast aluminium back-plate. 1690 / 2700 lumen output with fixed output or DALI dimmable control gear / integral photo sensor / integral manual or Self/Addressable test 3 hour emergency lighting options.
As Thorn Piazza II LED.
New Product
LumExpress Product
eControl Product
▼ Piazza II LED
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA II LED 1690-830 HF ANT | 15 | 1815 | LED | 2.80 | 96632757 | ||||
PIAZZA II LED 1690-830 HF P ANT | 15 | 1815 | LED | 2.80 | 96632758 | ||||
PIAZZA II LED 1690-840 HF ANT | 15 | 1844 | LED | 2.80 | 96666256 | ||||
PIAZZA II LED 1690-840 HF P ANT | 15 | 1844 | LED | 2.80 | 96666259 | ||||
PIAZZA II LED 2700-830 HF ANT | 25 | 2736 | LED | 2.80 | 96632759 | ||||
PIAZZA II LED 2700-830 HF P ANT | 25 | 2736 | LED | 2.80 | 96632760 | ||||
PIAZZA II LED 2700-840 HF ANT | 25 | 2910 | LED | 2.80 | 96666261 | ||||
PIAZZA II LED 2700-840 HF P ANT | 25 | 2910 | LED | 2.80 | 96666264 |
▼ Piazza II LED, emergency
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA II LED 1690-840 HF E3 ANT | 15 | 1844 | LED | 3.10 | 96666257 | ||||
PIAZZA II LED 1690-840 HF E3TX ANT | 15 | 1844 | LED | 3.10 | 96666258 | ||||
PIAZZA II LED 2700-840 HF E3 ANT | 25 | 2910 | LED | 3.10 | 96666262 | ||||
PIAZZA II LED 2700-840 HF E3TX ANT | 25 | 2910 | LED | 3.10 | 96666263 |
▼ Piazza II LED, dimmable
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA II LED 1690-840 HFI-X EC ANT | 15 | 1844 | LED | 2.80 | 96666260 | ||||
PIAZZA II LED 2700-840 HFI-X EC ANT | 25 | 2910 | LED | 2.80 | 96666265 |
