Porto di Livorno, Italia


  • Porto di Livorno
  • Porto di Livorno
  • Porto di Livorno
  • Porto di Livorno
  • Porto di Livorno
  • Porto di Livorno
  • Porto di Livorno
  • Lamp efficacy

    Lamp efficacy

    La tecnologia LED assicura un’efficiente conversione dell’energia elettrica in luce (lm/W)

  • Ballast classification

    Ballast classification

    Controlling the electricity supply to the lamp (Energy Efficiency Index).

  • Luminaire distribution

    Luminaire distribution

    Controlling light emission using optics which bend and shape the light to the correct location.

  • System efficacy

    System efficacy

    Combinando controllo ottico e termico all’interno dell’apparecchio (lm/W dell’apparecchio).

  • Presence/absence detection

    Presence/absence detection

    Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.

  • Luce diurna

    Luce diurna

    Artificial lighting which responds to the natural light conditions.

  • Constant illuminance

    Constant illuminance

    A function designed to produce correct light levels for the duration of the maintenance period.

  • Task-scene setting

    Task-scene setting

    Allowing the user to set scenes and adapt the lighting to different tasks.

  • Timed off

    Timed off

    Automatic cut-off can be installed to turn all lights off during unoccupied hours.

  • Task lighting

    Task lighting

    Lighting task areas with the correct amount of light.

  • Zoning of lighting

    Zoning of lighting

    Lighting is zoned according to area use.

  • Maintenance schedule

    Maintenance schedule

    Maintenance must be performed in response to product age, performance and environment.

  • Waste light

    Waste light

    Eliminating waste light which does not hit the intended target.

  • Reflectance


    Taking advantage of light which is reflected from the surface within the space.

  • Visible smart metering

    Visible smart metering

    Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

When talking about one of the latest solutions to come from Thorn we need to start with the numbers that define the project. Numbers may appear boring but they help demonstrate how exceptional the project is, both in terms of efficiency and also quality. For this project is for the Port of Livorno, one of the most important in Italy and the whole Mediterranean.

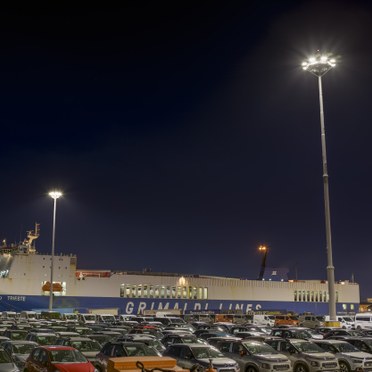

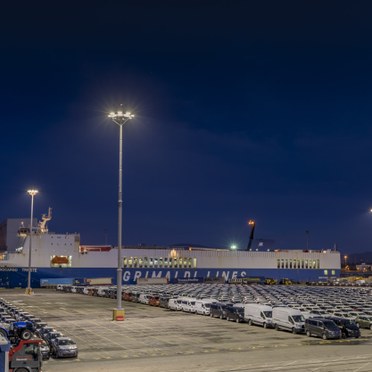

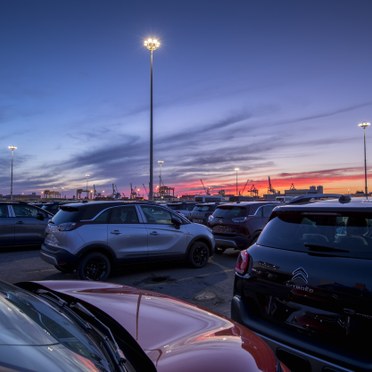

The installation covers an area of 120,000 square metres, that had previously been illuminated by 88 projectors, 8 for each of the 11 towers, with 2000 W discharge lamps. Installing Thorn's AreaFlood Pro LED projectors, equipped with 308 W light sources with an efficacy of 140 lm/W, has reduced the energy consumption required to light the entire port by 78%. Seventy-Eight percent less: we have gone from an installation of 193 kW to one of 43 kW. A revolution, added to which is the devices’ extraordinary life of 100 thousand hours without requiring re-lamping (L90B10 at 25°C). And both the compactness and lightness have reduced structural considerations, easing the cost of installation.
We started with the numbers because this extraordinary result could not be overlooked. However efficiency is not the end of the story,  the new installation guarantees the entire area a lighting quality that is totally superior to the previous installation, with the added benefit of energy savings. These are the cornerstones of Thorn's philosophy, which has AreaFlood Pro as one of its leading products.

The initial objective was to provide an average 30 lux illumination over the entire area, which in the design phase was divided according to the areas of application: loading and unloading cars and containers, vehicle and pedestrian transit and storage areas.

The result was achieved thanks to the AreaFlood Pro L 144L70-740 projectors, chosen by Marco Ceccherelli of LU.MAR. srl (Livorno), the company commissioned to update the lighting.  This is a flagship product from Thorn that offers a choice of five optics to adjust the lighting as required. It features precise lighting control and excellent light distribution combined with comfort and low energy use. The installation of the equipment in the port area required a custom treatment, "Marine Area", a paint that meets classes C4/C5M according to ISO 9223. In addition the attachments are made of suitable materials to avoid galvanic corrosion.

The solution has reached very high standards of illumination for such a large and differentiated area requiring perfect light for the many activities that take place there. In addition, the use of efficient product means that the customer has been able to make huge savings in energy costs.
