MovU Vehicle Radar
A high performance vehicle radar detecting vehicles to maximise energy savings and safety for low traffic roads
- Complete solution for road lighting comprising a Doppler radar, a mounting bracket and a high performance street lantern
- A proven solution used for several years on traffic lights
- Highly sensitive radar detects vehicles from up to 150m
- Discreet and easy to mount on any pole regardless of the diamter and height
Materials and Finish
Radar: black PC
Bracket: aluminium powder coated painted black
Installation and Mounting

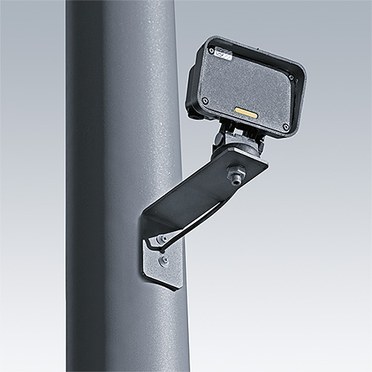

Radar to be fixed on the dedicated bracket (delivered in the same box) with a M8 screw. Bracket to be fixed at 3 to 5m high on a pole with 2 stainless steel screws M6. Other hole of 15 mm for cable needed in the column. Pre-cabled with 5m CSA 4x1mm² connection with lantern at the bottom of the pole. The radar has a relatively wide field of view allowing good vehicle detection coverage of single or dual lane approaches.
Specification
To specify state:
IP65 radar with fixation bracket mounted at 3 to 5m high on any hollow column, to be combined with IP66 LED luminaires programmed in a corridor mode to detect vehicles above 4km/h at 150m distance max. Compatible with pilot wire, RF or PL installations.
As Thorn MovU Vehicle Radar.
▼ MovU Vehicle Radar accessory
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MOVU VEHICLE RADAR MAX150M 120KM/H 230V | 0.92 | 96268881 |
