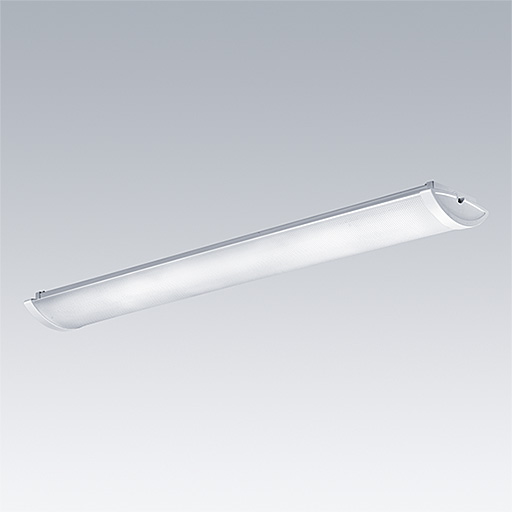

Prisma
Slim LED / fluorescent luminaire with curved prismatic diffuser for surface and suspended mounting
- Surface and suspended installation, through wiring (TW) variants available
- Robust and IP44 sealed housing extends applications to canteens, kitchens, laundry rooms, garages etc.
- Curved opal (OP) / clear (CL) / frosted (FR) prismatic diffuser for more visual comfort (wide light distribution, reduced glare)
- New highly efficient LED variants (up to 120 lm/W), sensor variants for even more energy saving
- Available in two lengths (600 / 1200mm), easy replacement of T16 with LED thanks to the same dimensions
Materials and Finish
Body: Pre-painted white 0.7mm galvanised steel.
Endcaps: Shockproof ASA plastic, white.
Diffuser: Prismatic/opal acrylic (emergency versions in polycarbonate).
Installation and Mounting
Keyhole fixing positions Ø14mm for direct mounting to ceiling, wall or bracket mounting. Twin lamp versions balanced for suspended mounting using accessories. Fixing centres: 28W-1100mm and 35/49W-1400mm. Two cable entries Ø19mm in the centre of the body (not 14W version where cable entry is at end of body) and a knockout hole in the endcaps. Grommets included. Cable capacity 5 x 2.5mm².
Specification
To specify state:
Slim LED / fluorescent luminaire with curved prismatic acrylic diffuser for surface and suspended mounting. Single and through wiring variants. Robust and IP44 sealed housing.
As Thorn Prisma.
▼ Prisma
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
PRISMA LED3000-830 HF FR L600 | LED | 1.50 | 96630830 | ||||||
PRISMA LED3000-840 HF FR L600 | LED | 1.50 | 96630824 | ||||||
PRISMA LED4400-830 HF FR L1200 | LED | 2.72 | 96630831 | ||||||
PRISMA LED4400-840 HF FR L1200 | LED | 2.72 | 96630825 | ||||||
PRISMA LED6200-830 HF FR L1200 | LED | 2.72 | 96630832 | ||||||
PRISMA LED6200-840 HF FR L1200 | LED | 2.72 | 96630826 |
▼ Prisma, through wired
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
PRISMA LED3000-830 HF FR L600 TW | 27 | 2850 | LED | 1.52 | 96630833 | ||||
PRISMA LED3000-840 HF FR L600 TW | 27 | 3100 | LED | 1.52 | 96630827 | ||||
PRISMA LED4400-830 HF FR L1200 TW | 35 | 3900 | LED | 2.81 | 96630834 | ||||
PRISMA LED4400-840 HF FR L1200 TW | 35 | 4250 | LED | 2.81 | 96630828 | ||||
PRISMA LED6200-830 HF FR L1200 TW | 54 | 5700 | LED | 2.81 | 96630835 | ||||
PRISMA LED6200-840 HF FR L1200 TW | 54 | 6200 | LED | 2.81 | 96630829 |
▼ Prisma, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
PRISMA LED3000-830 HFIX FR L600 | LED | 1.50 | 96630842 | ||||||
PRISMA LED3000-840 HFIX FR L600 | LED | 1.50 | 96630836 | ||||||
PRISMA LED4400-830 HFIX FR L1200 | LED | 2.72 | 96630843 | ||||||
PRISMA LED4400-840 HFIX FR L1200 | LED | 2.72 | 96630837 | ||||||
PRISMA LED6200-830 HFIX FR L1200 | LED | 2.72 | 96630844 | ||||||
PRISMA LED6200-840 HFIX FR L1200 | LED | 2.72 | 96630838 |
▼ Prisma, dimmable, through wired
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
PRISMA LED3000-830 HFIX FR L600 TW | 54 | 5700 | LED | 1.52 | 96630845 | ||||
PRISMA LED3000-840 HFIX FR L600 TW | 27 | 3100 | LED | 1.52 | 96630839 | ||||
PRISMA LED4400-830 HFIX FR L1200 TW | 35 | 3900 | LED | 2.81 | 96630846 | ||||
PRISMA LED4400-840 HFIX FR L1200 TW | 35 | 4250 | LED | 2.81 | 96630840 | ||||
PRISMA LED6200-830 HFIX FR L1200 TW | 54 | 5700 | LED | 2.81 | 96630847 | ||||
PRISMA LED6200-840 HFIX FR L1200 TW | 54 | 6200 | LED | 2.81 | 96630841 |
▼ Prisma, sensor versions
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
PRISMA LED4400-830 HF FR MWS L1200 | LED | 2.73 | 96630848 | ||||||
PRISMA LED4400-840 HF FR MWS L1200 | LED | 2.73 | 96630849 |
