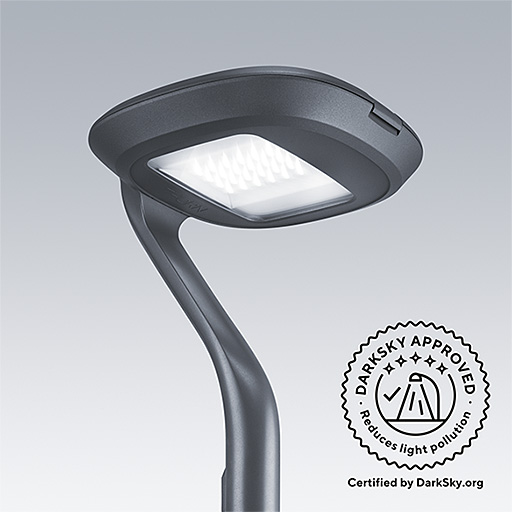

Flow

  • Flow

Highly versatile LED solution for people in the urban environment

  • Offering a high variety of mountings, tiltings, optics, dimming and control options to suit any urban application with a consistent design language
  • Giving a unique identity to the urban space with aesthetical ensembles
  • Designed to respect the biodiversity while delivering comfort and warm ambience (2700K)
  • Bringing intelligence to urban spaces with Incity lighting management system and motion detection not only for energy savings and improved safety but also to ease movements of pedestrians, cyclists and cars in the city
  • Future proof luminaire with removable control gear and optic also compatible with any existing CMS options on the market thanks to the 7 pin NEMA socket option
  • 10 kV surge protected as standard

Materials and Finish

Housing, canopy, spigot: die-cast aluminium EN AC 47100, powder coated texturized anthracite grey (close to RAL7043), other RAL colours on request, additional treatment for coastal atmosphere as variant.
Glass: 6 mm thick
Fixings: stainless steel

Installation and Mounting

Post top mounting : Ø60 or Ø76mm, adjustable tilt angle : 0° to +10° (5° steps)
Lateral mounting : Ø60 or Ø42mm, Adjustable tilt angle : -20° to +0° (5° steps)

Specification

To specify state:
Decorative LED lantern with great versatility. With up to 13 600 Llm, efficiency up to 139 Llm/W. Offering 6 mounting variants : post top amenity, post top, lateral, suspended, wall mounted and catenary. Wide optical offer with efficient Street R-PEC and Area lighting optics, 26 light distributions (symmetrical and asymmetrical) with a performance clear or prismatic comfort variants. 4000K, 3000K, 2700K colour temperatures, as standard. Internal back light control louvre, as an option. 10KV surge protection, as standard. Street variant : post top mounting for diameter 60mm or 76mm, lateral mounting for diameter 60mm or 42 mm. Tilting possibilities from -20° to +10°. Amenity variant : post top mounting for diameter 60mm, 76mm with adaptator. Suspended through 34G. DALI and BPS as standard, or LRT, PL, RF (InCity), MD presence detection, PN7 socket. Offering dedicated columns.
As Thorn Flow

New Product
LumExpress Product
eControl Product

Flow, narrow road optic, post top mounting

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
FW 12L105-740 NR BPS HFX CL2 T60F ANT424663LED9.6096666282
FW 12L35-740 NR BPS HFX CL1 T76F ANT151796LED9.6092901834
FW 12L35-740 NR BPS HFX CL2 T60F ANT151796LED9.6096666270
FW 12L50-740 NR BPS HFX CL1 T76F ANT202474LED9.6092901835
FW 12L50-740 NR BPS HFX CL2 T60F ANT202474LED9.6096666274
FW 12L70-740 NR BPS HFX CL1 T76F ANT283325LED9.6092901836
FW 12L70-740 NR BPS HFX CL2 T60F ANT283325LED9.6096666278
FW 24L105-740 NR BPS HFX CL2 T60F ANT809051LED9.6096666302
FW 24L35-740 NR BPS HFX CL1 T76F ANT283573LED9.6092901837
FW 24L35-740 NR BPS HFX CL2 T60F ANT283573LED9.6096666290
FW 24L50-740 NR BPS HFX CL1 T76F ANT384905LED9.6092901838
FW 24L50-740 NR BPS HFX CL2 T60F ANT384905LED9.6096666294
FW 24L70-740 NR BPS HFX CL1 T76F ANT526553LED9.6092901839
FW 24L70-740 NR BPS HFX CL2 T60F ANT526553LED9.6096666298
FW 36L105-740 NR BPS HFX CL2 T60F ANT11713604LED9.6096666326
FW 36L35-740 NR BPS HFX CL1 T76F ANT395346LED9.6092901840
FW 36L35-740 NR BPS HFX CL2 T60F ANT395346LED9.6096666310
FW 36L50-740 NR BPS HFX CL1 T76F ANT557361LED9.6092901841
FW 36L50-740 NR BPS HFX CL2 T60F ANT557361LED9.6096666314
FW 36L70-740 NR BPS HFX CL1 T76F ANT789839LED9.6092901842
FW 36L70-740 NR BPS HFX CL2 T60F ANT789839LED9.6096666318

Flow, narrow road optic, post top mounting (variants)

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
FW 36L85-740 NR BPS HFX CL2 T60F ANT MT9411476LED9.6096666322

Flow, narrow road optic, post top amenity

Flow, narrow road optic, lateral mounting

Flow, narrow road optic, suspended

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
FW 12L35-740 NR BPS HFX CL2 MSU151796LED9.5096666273
FW 24L50-740 NR BPS HFX CL2 MSU384905LED9.5096631019
FW 36L50-740 NR BPS HFX CL2 MSU557361LED9.5096631277

Flow, narrow road optic, catenary mounting

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
FW 24L50-740 NR-S BPS HFX CL2 MCA384905LED9.8096631020

Flow accessories

Description   Wt (kg)SAP Code
FW MTP MASK ANT0.0796631120
FW MTPA ADAPTOR D76 ANT0.8296631129
