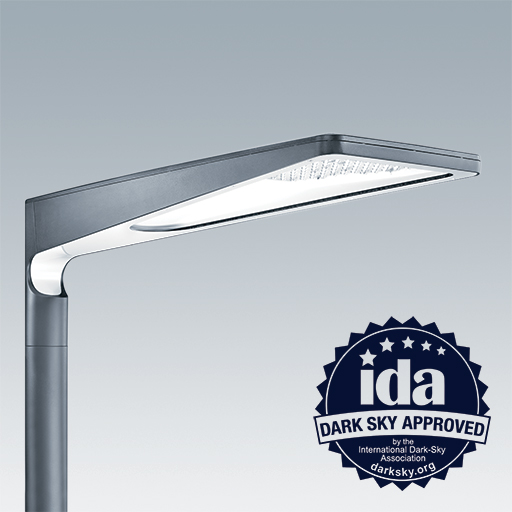

Urba

  • Urba
  • Urba
  • Urba

For sophistication and comfort in urban life

  • Exclusively designed for Thorn by world renowned architects, city planners and designers Wilmotte & Industries
  • Unique signature at day and night thanks to an optical system designed with special care for comfort (G6)
  • Outstanding versatility: 9 optics, lumen packages up to 15 000 lm, 2 sizes, 3 mounting options to fulfill a wide scope of projects (new and renovation) from S5 to Me2
  • Latest generation LED technology with integrated controls to minimise energy and maintenance costs

Materials and Finish

Luminaire:
Body: die cast aluminium - two options: dark grey (close to RAL 7043) or black (close to RAL 9005) textured finish
Glass: tempered flat glass or dichroic flat glass (5mm). Prismatic glass on request
Frame: aluminium - powder polycarbonate, metallised aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)

Brackets with coordinated columns:
Painted galvanised steel, dark grey or black textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium, dark grey or black textured finish

Installation and Mounting

Luminaire: Supplied complete and ready to install, in a single box. Pre-wired post-top versions with 8m (small version) or 10m (large version) H07RN-F cable. The following options are available: side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°, post-top mounting Ø60mm or Ø76mm, spigot length 100mm. Weight: 12kg (small versions) and 17kg (large version)

Brackets with coordinated columns: Dedicated range of columns and brackets. Recommended heights for Urba small: 4 to 6m, for Urba large: 6 to 8m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200x200mm. Galvanised steel columns with flange mountings: 300x300mm

Specification

To specify Urba luminaire state:
Highly designed urban street lantern with 2 sizes, 7 mounting options, 3 enclosures, 9 light distributions with 2 dedicated optics to comfort (G6). Efficient (up to 100 Llm/W) R-PEC optic. Side entry and post top mountings, 60mm and 76mm diameters, with tilt adjustments. Wide range of intelligent lighting control solutions from stand alone dimming to remote control.
As Thorn Urba

To specify Urba brackets and columns state:
Wide range of coordinated short and long galvanised steel brackets, diameter 76mm top. Cylindrical conical galvanised steel columns up to 8m. Dark grey and black textured finish. 2 diameter aluminium cylindrical conical columns up to 6m. Dark grey and black textured finish.
As Thorn Urba brackets and columns

New Product
LumExpress Product
eControl Product

▼ Urba S RWET

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 24L35 RWET ANT BP CL2 8MMTP60 740283342LED10.5096269653
URBA S 24L35 RWET ANT BP CL2 MLE L740283342LED10.5096269491
URBA S 24L50 RWET ANT BP CL2 8MMTP60 740384567LED10.5096269656
URBA S 24L50 RWET ANT BP CL2 MLE L740384567LED10.5096269494
URBA S 24L70 RWET ANT BP CL2 8MMTP60 740536070LED10.5096269659
URBA S 24L70 RWET ANT BP CL2 MLE L740536070LED10.5096269497
URBA S 36L35 RWET ANT BP CL2 8MMTP60 740394994LED10.5096269654
URBA S 36L35 RWET ANT BP CL2 MLE L740394994LED10.5096269492
URBA S 36L50 RWET ANT BP CL2 8MMTP60 740556807LED10.5096269657
URBA S 36L50 RWET ANT BP CL2 MLE L740556807LED10.5096269495
URBA S 36L70 RWET ANT BP CL1 MLE L740779009LED10.5096269786
URBA S 36L70 RWET ANT BP CL2 8MMTP60 740779009LED10.5096269660
URBA S 36L70 RWET ANT BP CL2 MLE L740779009LED10.5096269498

▼ Urba S NR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 12L70 NR ANT BP CL2 8M MTP60 L730282938LED10.5096269703
URBA S 24L35 NR ANT BP CL1 8M MTP76 L740283213LED10.5096269824
URBA S 24L35 NR ANT BP CL1 MLE L740283213LED10.5096269769
URBA S 24L35 NR ANT BP CL2 8M MTP60 L740283213LED10.5096269635
URBA S 24L35 NR ANT BP CL2 MLE L740283213LED10.5096269473
URBA S 24L50 NR ANT BP CL1 8M MTP76 L740384391LED10.5096269827
URBA S 24L50 NR ANT BP CL1 MLE L740384391LED10.5096269772
URBA S 24L50 NR ANT BP CL2 8M MTP60 L730383990LED10.5096269701
URBA S 24L50 NR ANT BP CL2 8M MTP60 L740384391LED10.5096269638
URBA S 24L50 NR ANT BP CL2 MLE L740384391LED10.5096269476
URBA S 24L70 NR ANT BP CL1 8M MTP76 L740535837LED10.5096269830
URBA S 24L70 NR ANT BP CL1 MLE L740535837LED10.5096269775
URBA S 24L70 NR ANT BP CL2 8M MTP60 L740535837LED10.5096269641
URBA S 24L70 NR ANT BP CL2 MLE L740535837LED10.5096269479
URBA S 36L35 NR ANT BP CL1 8M MTP76 L740394801LED10.5096269825
URBA S 36L35 NR ANT BP CL1 MLE L740394801LED10.5096269770
URBA S 36L35 NR ANT BP CL2 8M MTP60 L740394801LED10.5096269636
URBA S 36L35 NR ANT BP CL2 MLE L740394801LED10.5096269474
URBA S 36L50 NR ANT BP CL1 8M MLE L740556545LED10.5096271351
URBA S 36L50 NR ANT BP CL1 8M MTP76 L740556545LED10.5096269828
URBA S 36L50 NR ANT BP CL1 MLE L740556545LED10.5096269773
URBA S 36L50 NR ANT BP CL2 8M MTP60 L740556545LED10.5096269639
URBA S 36L50 NR ANT BP CL2 MLE L740556545LED10.5096269477
URBA S 36L70 NR ANT BP CL1 8M MTP76 L740778662LED10.5096269831
URBA S 36L70 NR ANT BP CL1 HT 8M TP76 74778662LED10.5096271372
URBA S 36L70 NR ANT BP CL1 MLE L740778662LED10.5096269776
URBA S 36L70 NR ANT BP CL2 8M MTP60 L740778662LED11.6696269642
URBA S 36L70 NR ANT BP CL2 MLE L740778662LED10.5096269480
URBA S 36L70 NR ANT CL1 HT MLE L740778662LED10.5096271374
URBA S 36L70 NR ANT CL1 HT MLE L740778662LED10.5096271368
URBA S 36L70 NR ANT CL1 MLE L740778662LED10.5096269850

▼ Urba S WR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 12L50 WR ANT BP CL2 8M MTP60 L730211867LED10.5096269709
URBA S 24L35 WR ANT BP CL1 8M MTP76 L740283090LED10.5096269833
URBA S 24L35 WR ANT BP CL1 MLE L740283090LED10.5096269778
URBA S 24L35 WR ANT BP CL2 8M MTP60 L740283090LED10.5096269644
URBA S 24L35 WR ANT BP CL2 MLE L740283090LED10.5096269482
URBA S 24L50 WR ANT BP CL1 8M MTP76 L740394222LED10.5096269836
URBA S 24L50 WR ANT BP CL1 MLE L740394222LED10.5096269781
URBA S 24L50 WR ANT BP CL2 8M MTP60 L740394222LED10.5096269647
URBA S 24L50 WR ANT BP CL2 MLE L740394222LED10.5096269485
URBA S 24L70 WR ANT BP CL1 8M MTP76 L740545612LED10.5096269839
URBA S 24L70 WR ANT BP CL1 MLE L740545612LED10.5096269784
URBA S 24L70 WR ANT BP CL2 8M MTP60 L740545612LED10.5096269650
URBA S 24L70 WR ANT BP CL2 MLE L730545197LED10.5096269550
URBA S 24L70 WR ANT BP CL2 MLE L740545612LED10.5096269488
URBA S 36L35 WR ANT BP CL1 8M MTP76 L740404617LED10.5096269834
URBA S 36L35 WR ANT BP CL1 MLE L740394873LED10.5096269779
URBA S 36L35 WR ANT BP CL2 8M MTP60 L730394429LED10.5096269708
URBA S 36L35 WR ANT BP CL2 8M MTP60 L740394873LED10.5096269645
URBA S 36L35 WR ANT BP CL2 MLE L740394873LED10.5096269483
URBA S 36L50 WR ANT BP CL1 8M MTP76 L740556643LED10.5096269837
URBA S 36L50 WR ANT BP CL1 MLE L740556643LED10.5096269782
URBA S 36L50 WR ANT BP CL2 8M MTP60 L740556643LED10.5096269648
URBA S 36L50 WR ANT BP CL2 MLE L740556643LED10.5096269486
URBA S 36L70 WR ANT BP CL1 8M MTP76 L740778792LED10.5096269840
URBA S 36L70 WR ANT BP CL1 HT 8M TP76 74778792LED10.5096271373
URBA S 36L70 WR ANT BP CL1 HT MLE L740778792LED10.5096271369
URBA S 36L70 WR ANT BP CL1 MLE L740778792LED10.5096269785
URBA S 36L70 WR ANT BP CL2 8M MTP60 L740778792LED10.5096269651
URBA S 36L70 WR ANT BP CL2 MLE L740778792LED10.5096269489

▼ Urba S WSC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 24L35 WSC ANT BP CL1 8M MTP76 740283047LED10.5096269842
URBA S 24L35 WSC ANT BP CL1 MLE L740283047LED10.5096269788
URBA S 24L35 WSC ANT BP CL2 8M MTP60 740283047LED10.5096269662
URBA S 24L35 WSC ANT BP CL2 MLE L740283047LED10.5096269500
URBA S 24L50 WSC ANT BP CL1 8M MTP76 740394164LED10.5096269845
URBA S 24L50 WSC ANT BP CL1 MLE L740394164LED10.5096269791
URBA S 24L50 WSC ANT BP CL2 8M MTP60 740394164LED10.5096269665
URBA S 24L50 WSC ANT BP CL2 MLE L740394164LED10.5096269503
URBA S 24L70 WSC ANT BP CL1 8M MTP76 740545534LED10.5096269848
URBA S 24L70 WSC ANT BP CL1 MLE L740545534LED10.5096269794
URBA S 24L70 WSC ANT BP CL2 8M MTP60 740545534LED10.5096269668
URBA S 24L70 WSC ANT BP CL2 MLE L740545534LED10.5096269506
URBA S 36L35 WSC ANT BP CL1 8M MTP76 740404553LED10.5096269843
URBA S 36L35 WSC ANT BP CL1 MLE L740404553LED10.5096269789
URBA S 36L35 WSC ANT BP CL2 8M MTP60 740394806LED10.5096269663
URBA S 36L35 WSC ANT BP CL2 MLE L740394806LED10.5096269501
URBA S 36L50 WSC ANT BP CL1 8M MTP76 740556551LED10.5096269846
URBA S 36L50 WSC ANT BP CL1 MLE L740556551LED10.5096269792
URBA S 36L50 WSC ANT BP CL2 8M MTP60 740556551LED10.5096269666
URBA S 36L50 WSC ANT BP CL2 MLE L740556551LED10.5096269504
URBA S 36L70 WSC ANT BP CL1 8M MTP76 740778670LED10.5096269849
URBA S 36L70 WSC ANT BP CL1 MLE L740778670LED10.5096269795
URBA S 36L70 WSC ANT BP CL2 8M MTP60 740778670LED10.5096269669
URBA S 36L70 WSC ANT BP CL2 MLE L740778670LED10.5096269507

▼ Urba S IVS

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 36L70 IVS ANT CL2 8M MTP60 740778540LED10.5096269606

▼ Urba S SC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 24L35 SC ANT BP CL1 MLE L740283367LED10.5096269797
URBA S 24L35 SC ANT BP CL2 8M MTP60 L740283367LED10.5096269671
URBA S 24L35 SC ANT BP CL2 MLE L740283367LED10.5096269509
URBA S 24L35 SC BK BP CL2 MLE L740282994LED10.5096271173
URBA S 24L50 SC ANT BP CL1 MLE L740384602LED10.5096269800
URBA S 24L50 SC ANT BP CL2 8M MTP60 L740384602LED10.5096269674
URBA S 24L50 SC ANT BP CL2 MLE L740384602LED10.5096269512
URBA S 24L50 SC BK BP CL2 MLE L740384092LED10.5096271174
URBA S 24L70 SC ANT BP CL1 MLE L740536117LED10.5096269803
URBA S 24L70 SC ANT BP CL2 8M MTP60 L740536117LED10.5096269677
URBA S 24L70 SC ANT BP CL2 MLE L740536117LED10.5096269515
URBA S 24L70 SC ANT CL2 MLE L740536117LED10.5096269751
URBA S 24L70 SC ANT CLO CL2 MLE L740536117LED10.5096269752
URBA S 36L35 SC ANT BP CL1 8M MTP76 740395032LED10.5096270862
URBA S 36L35 SC ANT BP CL1 MLE L740395032LED10.5096269798
URBA S 36L35 SC ANT BP CL2 8M MTP60 L740395032LED10.5096269672
URBA S 36L35 SC ANT BP CL2 8M MTP76 740395032LED10.5096270863
URBA S 36L35 SC ANT BP CL2 MLE L740395032LED10.5096269510
URBA S 36L35 SC BK BP CL1 8M MTP76 740394475LED10.5096270860
URBA S 36L35 SC BK BP CL2 8M MTP76 740394475LED10.5096270861
URBA S 36L35 SC BK BP CL2 MLE L740394475LED10.5096270073
URBA S 36L50 SC ANT BP CL1 MLE L740556859LED10.5096269801
URBA S 36L50 SC ANT BP CL2 8M MTP60 L740556859LED10.5096269675
URBA S 36L50 SC ANT BP CL2 MLE L740556859LED10.5096269513
URBA S 36L50 SC BK BP CL1 8M MTP76 740556099LED10.5096271170
URBA S 36L50 SC BK BP CL2 8M MTP60 740556099LED10.5096271172
URBA S 36L50 SC BK BP CL2 8M MTP76 740556099LED10.5096271171
URBA S 36L70 SC ANT BP CL1 HT MLE L740779077LED10.5096271371
URBA S 36L70 SC ANT BP CL1 MLE L740779077LED10.5096269804
URBA S 36L70 SC ANT BP CL2 8M MTP60 L740779077LED10.5096269678
URBA S 36L70 SC ANT BP CL2 MLE L740779077LED10.5096269516

▼ Urba S EPR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 36L35 EPR ANT CL2 8M MTP60 L740394403LED10.5096271168
URBA S 36L35 EPR BK CL2 8M MTP76 L740394403LED10.5096271169

▼ Urba L RC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 RC ANT BP CL1 10M MTP76 L74516544LED16.0096270021
URBA L 48L35 RC ANT BP CL1 MLE L740516544LED16.0096270002
URBA L 48L35 RC ANT BP CL2 10M MTP60 L74516544LED16.0096269949
URBA L 48L35 RC ANT BP CL2 MLE L730515947LED16.0096269903
URBA L 48L35 RC ANT BP CL2 MLE L740516544LED16.0096269875
URBA L 48L50 RC ANT BP CL1 10M MTP76 L74728928LED16.0096270024
URBA L 48L50 RC ANT BP CL1 MLE L740728928LED16.0096270005
URBA L 48L50 RC ANT BP CL2 10M MTP60 L74728928LED16.0096269952
URBA L 48L50 RC ANT BP CL2 MLE L740728928LED16.0096269878
URBA L 48L70 RC ANT BP CL1 10M MTP76 L7410311832LED16.0096270027
URBA L 48L70 RC ANT BP CL1 MLE L74010311832LED16.0096270008
URBA L 48L70 RC ANT BP CL2 10M MTP60 L7410311832LED16.0096269955
URBA L 48L70 RC ANT BP CL2 MLE L74010311832LED16.0096269881
URBA L 48L70 RC ANT CL1 HT MLE L74010311832LED16.0096271379
URBA L 48L70 RC ANT CL1 HT10M TP76 74010311832LED16.0096271385
URBA L 60L70 RC ANT BP CL1 10M MTP76 L7412814671LED16.0096270053
URBA L 60L70 RC ANT BP CL1 MLE L74012814671LED16.0096270051
URBA L 60L70 RC ANT BP CL2 10M MTP60 L7412814671LED16.0096270047
URBA L 60L70 RC ANT BP CL2 MLE L74012814671LED16.0096270042
URBA L 60L70 RC ANT CL1 HT MLE L74012814671LED16.0096271387
URBA L 60L70 RC ANT CL1 HT10M TP76 74012814671LED16.0096271389
URBA L 72L35 RC ANT BP CL1 10M MTP76 L74759773LED16.0096270022
URBA L 72L35 RC ANT BP CL1 MLE L740759773LED16.0096270003
URBA L 72L35 RC ANT BP CL2 10M MTP60 L74759773LED16.0096269950
URBA L 72L35 RC ANT BP CL2 MLE L740759773LED16.0096269876
URBA L 72L50 RC ANT BP CL1 10M MTP76 L7410913290LED16.0096270025
URBA L 72L50 RC ANT BP CL1 MLE L74010913290LED16.0096270006
URBA L 72L50 RC ANT BP CL2 10M MTP60 L7410913290LED16.0096269953
URBA L 72L50 RC ANT BP CL2 MLE L74010913290LED16.0096269879
URBA L 72L50 RC ANT CL1 HT MLE L74010913290LED16.0096271377
URBA L 72L50 RC ANT CL1 HT10M TP76 74010913290LED16.0096271383
URBA L 72L70V2 RC ANT BP C1 10MMTP76 74015317518LED16.0096270028
URBA L 72L70V2 RC ANT BP C2 10MMTP6 74015317518LED16.0096269956
URBA L 72L70V2 RC ANT BP CL1 MLE L74015317518LED16.0096270009
URBA L 72L70V2 RC ANT BP CL2 MLE L74015317518LED16.0096269882
URBA L 84L35 RC ANT BP CL1 10M MTP76 L748811382LED16.0096270023
URBA L 84L35 RC ANT BP CL1 MLE L7408811382LED16.0096270004
URBA L 84L35 RC ANT BP CL2 10M MTP60 L748811382LED16.0096269951
URBA L 84L35 RC ANT BP CL2 MLE L7408811382LED16.0096269877
URBA L 84L50 RC ANT BP CL1 10M MTP76 L7412715459LED16.0096270026
URBA L 84L50 RC ANT BP CL1 MLE L74012715459LED16.0096270007
URBA L 84L50 RC ANT BP CL2 10M MTP60 L7412715459LED16.0096269954
URBA L 84L50 RC ANT BP CL2 MLE L74012715459LED16.0096269880
URBA L 84L50 RC ANT CL1 HT10M TP76 74012715459LED16.0096271384
URBA L 84L70 RC ANT BP CL1 10M MTP76 L7417820331LED16.0096270029
URBA L 84L70 RC ANT BP CL1 MLE L74017820331LED16.0096270010
URBA L 84L70 RC ANT BP CL2 10M MTP60 L7417820331LED16.0096269957
URBA L 84L70 RC ANT BP CL2 MLE L74017820331LED16.0096269883

▼ Urba L RWET

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 RWET ANT BP CL2 10MMTP60 74516666LED16.0096269940
URBA L 48L35 RWET ANT BP CL2 MLE L740516666LED16.0096269866
URBA L 48L50 RWET ANT BP CL2 10MMTP60 74729094LED16.0096269943
URBA L 48L50 RWET ANT BP CL2 MLE L730728264LED16.0096269897
URBA L 48L50 RWET ANT BP CL2 MLE L740729094LED16.0096269869
URBA L 48L70 RWET ANT BP CL2 10MMTP60 7410312052LED16.0096269946
URBA L 48L70 RWET ANT BP CL2 MLE L73010310953LED16.0096269900
URBA L 48L70 RWET ANT BP CL2 MLE L74010312052LED16.0096269872
URBA L 60L70 RWET ANT BP CL2 10MMTP60 7412814944LED16.0096270046
URBA L 60L70 RWET ANT BP CL2 MLE L74012814944LED16.0096270041
URBA L 72L35 RWET ANT BP CL2 10MMTP60 74759954LED16.0096269941
URBA L 72L35 RWET ANT BP CL2 MLE L740759954LED16.0096269867
URBA L 72L50 RWET ANT BP CL2 10MMTP60 7410913538LED16.0096269944
URBA L 72L50 RWET ANT BP CL2 MLE L73010912303LED16.0096269898
URBA L 72L50 RWET ANT BP CL2 MLE L74010913538LED16.0096269870
URBA L 72L70V2 RWET ANT BP C2 10MMTP6 7415317844LED16.0096269947
URBA L 72L70V2 RWET ANT BP CL2 MLE L73015316216LED16.0096269901
URBA L 72L70V2 RWET ANT BP CL2 MLE L74015317844LED16.0096269873
URBA L 84L35 RWET ANT BP CL2 10MMTP60 748811594LED16.0096269942
URBA L 84L35 RWET ANT BP CL2 MLE L7408811594LED16.0096269868
URBA L 84L50 RWET ANT BP CL2 10MMTP60 7412715747LED16.0096269945
URBA L 84L50 RWET ANT BP CL2 MLE L73012714310LED16.0096269899
URBA L 84L50 RWET ANT BP CL2 MLE L74012715747LED16.0096269871
URBA L 84L70 RWET ANT BP CL2 10MMTP60 7417820709LED16.0096269948
URBA L 84L70 RWET ANT BP CL2 MLE L74017820709LED16.0096269874

▼ Urba L NR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 NR ANT BP CL1 10M MTP76 L74516409LED16.0096270012
URBA L 48L35 NR ANT BP CL1 MLE L740516409LED16.0096269993
URBA L 48L35 NR ANT BP CL2 10M MTP60 L74516409LED16.0096269931
URBA L 48L35 NR ANT BP CL2 MLE L740516409LED16.0096269856
URBA L 48L50 NR ANT BP CL1 10M MTP76 L74728744LED16.0096270015
URBA L 48L50 NR ANT BP CL1 MLE L740728744LED16.0096269996
URBA L 48L50 NR ANT BP CL2 10M MTP60 L74728744LED16.0096269934
URBA L 48L50 NR ANT BP CL2 MLE L740728744LED16.0096269859
URBA L 48L70 NR ANT BP CL1 10M MTP76 L7410311588LED16.0096270018
URBA L 48L70 NR ANT BP CL1 MLE L74010311588LED16.0096269999
URBA L 48L70 NR ANT BP CL2 10M MTP60 L7410311588LED16.0096269937
URBA L 48L70 NR ANT BP CL2 MLE L74010311588LED16.0096269862
URBA L 48L70 NR ANT CL1 HT MLE L74010311588LED16.0096271390
URBA L 48L70 NR ANT CL1 HT10M TP76 74010311588LED16.0096271382
URBA L 60L70 NR ANT BP CL1 10M MTP76 L7412814368LED16.0096270052
URBA L 60L70 NR ANT BP CL1 MLE L74012814368LED16.0096270050
URBA L 60L70 NR ANT BP CL2 10M MTP60 L7412814368LED16.0096270045
URBA L 60L70 NR ANT BP CL2 MLE L74012814368LED16.0096270040
URBA L 60L70 NR ANT CL1 HT MLE L74012814368LED16.0096271386
URBA L 60L70 NR ANT CL1 HT10M TP76 74012814368LED16.0096271388
URBA L 60L70 NR ANT CL2 MLE L74012814368LED16.0096270048
URBA L 60L70 NR ANT CLO CL2 MLE L74012814368LED16.0096270049
URBA L 72L35 NR ANT BP CL1 10M MTP76 L74759571LED16.0096270013
URBA L 72L35 NR ANT BP CL1 MLE L740759571LED16.0096269994
URBA L 72L35 NR ANT BP CL2 10M MTP60 L74759571LED16.0096269932
URBA L 72L35 NR ANT BP CL2 MLE L740759571LED16.0096269857
URBA L 72L50 NR ANT BP CL1 10M MLE L74010913016LED16.0096271355
URBA L 72L50 NR ANT BP CL1 10M MTP76 L7410913016LED16.0096270016
URBA L 72L50 NR ANT BP CL1 MLE L74010913016LED16.0096269997
URBA L 72L50 NR ANT BP CL2 10M MTP60 L7410913016LED16.0096269935
URBA L 72L50 NR ANT BP CL2 MLE L74010913016LED16.0096269860
URBA L 72L50 NR ANT CL1 HT MLE L74010913016LED16.0096271375
URBA L 72L50 NR ANT CL1 HT10M TP76 74010913016LED16.0096271380
URBA L 72L50 NR ANT CL2 PL MLE L74010913016LED16.0096270038
URBA L 72L70V2 NR ANT BP C1 10MMTP76 74015317157LED16.0096270019
URBA L 72L70V2 NR ANT BP C2 10MMTP6 74015317157LED16.0096269938
URBA L 72L70V2 NR ANT BP CL1 MLE L74015317157LED16.0096270000
URBA L 72L70V2 NR ANT BP CL2 MLE L74015317157LED16.0096269863
URBA L 72L70V2 NR ANT CL2 MLE L74015317157LED16.0096269985
URBA L 72L70V2 NR ANT CLO CL2 MLE L74015317157LED16.0096269986
URBA L 84L35 NR ANT BP CL1 10M MTP76 L748810130LED16.0096270014
URBA L 84L35 NR ANT BP CL1 MLE L7408810130LED16.0096269995
URBA L 84L35 NR ANT BP CL2 10M MTP60 L748810130LED16.0096269933
URBA L 84L35 NR ANT BP CL2 MLE L7408810130LED16.0096269858
URBA L 84L50 NR ANT BP 10KV CL1 MLE L74012715141LED16.0096269990
URBA L 84L50 NR ANT BP CL1 10M MTP76 L7412715141LED16.0096270017
URBA L 84L50 NR ANT BP CL1 MLE L74012715141LED16.0096269998
URBA L 84L50 NR ANT BP CL2 10M MTP60 L7412715141LED16.0096269936
URBA L 84L50 NR ANT BP CL2 MLE L74012715141LED16.0096269861
URBA L 84L50 NR ANT CL1 HT10M TP76 74012715141LED16.0096271381
URBA L 84L70 NR ANT BP CL1 10M MTP76 L7417819912LED16.0096270020
URBA L 84L70 NR ANT BP CL1 MLE L74017819912LED16.0096270001
URBA L 84L70 NR ANT BP CL2 10M MTP60 L7417819912LED16.0096269939
URBA L 84L70 NR ANT BP CL2 MLE L74017819912LED16.0096269864
URBA L 84L70 NR ANT BP PM CL1 10MTP7674017819912LED16.0096270033
URBA L 84L70 NR ANT CL1 MLE L74017819912LED16.0096270030
URBA L 84L70 NR ANT CLO CL1 MLE L74017819912LED16.0096270031
URBA L 84L70 NR ANT PM CL1 MLE L74017819912LED16.0096270032

▼ Urba L WR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 72L50 WR ANT BP CL2 MLE L74010913212LED16.0096269865

▼ Urba L WSC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 72L50 WSC ANT BP CL1 MLE L74010913029LED16.0096270011

▼ Urba L IVS

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L70 IVS ANT CL2 10M MTP60 74010311425LED16.0096269928
URBA L 48L70 IVS ANT CL2 10M MTP60 75710311425LED16.0096272235

▼ Urba L SC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 72L50 SC ANT BP CL2 MLE L74010913641LED16.0096269884
URBA L 84L35 SC BK BP CL2 10M MTP76 L7408810389LED16.0096270082

▼ Urba Aluminium columns

Description   Wt (kg)SAP Code
URBA COL 4M AL D60 ANT21.0096270906
URBA COL 4M AL D60 BK40.0096270899
URBA COL 4M AL D76 ANT45.5096270909
URBA COL 4M AL D76 BK45.5096270903
URBA COL 5M AL D60 ANT28.8596270907
URBA COL 5M AL D60 BK0.0096270901
URBA COL 5M AL D76 ANT38.0096270910
URBA COL 5M AL D76 BK48.7596270904
URBA COL 6M AL D60 ANT23.0096270908
URBA COL 6M AL D60 BK23.0096270902
URBA COL 6M AL D76 ANT60.0096270911
URBA COL 6M AL D76 BK61.0096270905

▼ Urba Steel columns

Description   Wt (kg)SAP Code
URBA COL 5M ST 1XBRA 0,8 TOP76 D60 ANT50.0096270922
URBA COL 5M ST 1XBRA 0,8 TOP76 D60 BK0.0096270912
URBA COL 6M ST 1XBRA 0,8 TOP76 D60 ANT150.0096270923
URBA COL 6M ST 1XBRA 0,8 TOP76 D60 BK0.0096270913
URBA COL 6M ST 2XBRA 0,45 TOP76 D60 ANT0.0096270929
URBA COL 6M ST 2XBRA 0,45 TOP76 D60 BK0.0096270919
URBA COL 6M ST 2XBRA 0,8 TOP76 D60 BK0.0096270916
URBA COL 6M ST 2XBRA 0,8 TOP76 D60 ANT150.0096270926
URBA COL 7M ST 1XBRA 0,8 TOP76 D60 ANT0.0096270924
URBA COL 7M ST 1XBRA 0,8 TOP76 D60 BK0.0096270914
URBA COL 7M ST 2XBRA 0,45 TOP76 D60 ANT0.0096270930
URBA COL 7M ST 2XBRA 0,45 TOP76 D60 BK0.0096270920
URBA COL 7M ST 2XBRA 0,8 TOP76 D60 ANT0.0096270927
URBA COL 7M ST 2XBRA 0,8 TOP76 D60 BK0.0096270917
URBA COL 8M ST 1XBRA 0,8 TOP 76 D60 BK0.0096270915
URBA COL 8M ST 1XBRA 0,8 TOP76 D60 ANT150.0096270925
URBA COL 8M ST 2XBRA 0,45 TOP76 D60 ANT0.0096270931
URBA COL 8M ST 2XBRA 0,45 TOP76 D60 BK0.0096270921
URBA COL 8M ST 2XBRA 0,8 TOP76 D60 ANT150.0096270928
URBA COL 8M ST 2XBRA 0,8 TOP76 D60 BK0.0096270918

▼ Urba Steel brackets

Description   Wt (kg)SAP Code
URBA 1XBRA 0,8 MTP TOP76 D60 ANT3.0096270892
URBA 1XBRA 0,8 MTP TOP76 D60 BK5.0096270884
URBA 2XBRA 0,45 MTP TOP76 D60 ANT8.8596270894
URBA 2XBRA 0,45 MTP TOP76 D60 BK0.8096270889
URBA 2XBRA 0,8 MTP TOP76 D60 ANT9.2496270895
URBA 2XBRA 0,8 MTP TOP76 D60 BK0.0096270888
URBA BRA MID POLE 0,45 ANT3.0096271096
URBA BRA MID POLE 0,45 BK0.0096271095
URBA MWA 0,45 ANT5.0096270897
URBA MWA 0,45 BK0.0096270891
URBA MWA 0,8 ANT8.0096270896
URBA MWA 0,8 BK8.0096270890

▼ Urba Configured products

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 NR ANT BP CL2 10M MTP60 L73515825LED13.7096269958
URBA L 48L35 NR ANT BP CL2 MLE L730515825LED17.0096269885
URBA L 48L35 RC ANT BP CL2 10M MTP60 L73515947LED17.0096269976
URBA L 48L35 RWET ANT BP CL2 10MMTP60 73516058LED17.0096269967
URBA L 48L35 RWET ANT BP CL2 MLE L730516058LED17.0096269894
URBA L 48L50 NR ANT BP CL2 10M MTP60 L73727946LED17.0096269961
URBA L 48L50 NR ANT BP CL2 MLE L730727946LED17.0096269888
URBA L 48L50 RC ANT BP CL2 10M MTP60 L73728113LED17.0096269979
URBA L 48L50 RC ANT BP CL2 MLE L730728113LED17.0096269906
URBA L 48L50 RWET ANT BP CL2 10MMTP60 73728264LED17.0096269970
URBA L 48L70 NR ANT BP CL2 10M MTP60 L7310310531LED17.0096269964
URBA L 48L70 NR ANT BP CL2 MLE L73010310531LED17.0096269891
URBA L 48L70 RC ANT BP CL2 10M MTP60 L7310310752LED17.0096269982
URBA L 48L70 RC ANT BP CL2 MLE L73010310752LED17.0096269909
URBA L 48L70 RWET ANT BP CL2 10MMTP60 7310310953LED17.0096269973
URBA L 60L70 NR ANT BP CL2 10M MTP60 73012813058LED17.0096270057
URBA L 60L70 NR ANT BP CL2 MLE L73012813058LED16.0096270054
URBA L 60L70 RC ANT BP CL2 10M MTP60 73012813332LED17.0096270059
URBA L 60L70 RC ANT BP CL2 MLE L73012813332LED17.0096270056
URBA L 60L70 RWET ANT BP CL2 MLE L73012813580LED16.0096270055
URBA L 60L70 RWET ANT BP CL2 10MMTP60 7312813580LED17.0096270058
URBA L 72L35 NR ANT BP CL2 10M MTP60 L73758698LED17.0096269959
URBA L 72L35 NR ANT BP CL2 MLE L730758698LED17.0096269886
URBA L 72L35 RC ANT BP CL2 10M MTP60 L73758881LED17.0096269977
URBA L 72L35 RC ANT BP CL2 MLE L730758881LED17.0096269904
URBA L 72L35 RWET ANT BP CL2 10MMTP60 73759046LED17.0096269968
URBA L 72L35 RWET ANT BP CL2 MLE L730759046LED17.0096269895
URBA L 72L50 NR ANT BP CL2 10M MTP60 L7310911829LED17.0096269962
URBA L 72L50 NR ANT BP CL2 MLE L73010911829LED17.0096269889
URBA L 72L50 RC ANT BP CL2 10M MTP60 L7310912078LED17.0096269980
URBA L 72L50 RC ANT BP CL2 MLE L73010912078LED17.0096269907
URBA L 72L50 RWET ANT BP CL2 10MMTP60 7310912303LED17.0096269971
URBA L 72L70V2 NR ANT BP C2 10MMTP6 73015315592LED17.0096269965
URBA L 72L70V2 NR ANT BP CL2 MLE L73015315592LED17.0096269892
URBA L 72L70V2 RC ANT BP C2 10MMTP6 73015315920LED17.0096269983
URBA L 72L70V2 RC ANT BP CL2 MLE L73015315920LED17.0096269910
URBA L 72L70V2 RWET ANT BP C2 10MMTP6 7315316216LED17.0096269974
URBA L 84L35 NR ANT BP CL2 10M MTP60 L738810130LED17.0096269960
URBA L 84L35 NR ANT BP CL2 MLE L7308810130LED17.0096269887
URBA L 84L35 NR ANT BPL CL2 MLE L7308810130LED17.0096269989
URBA L 84L35 RC ANT BP CL2 10M MTP60 L738810343LED17.0096269978
URBA L 84L35 RC ANT BP CL2 MLE L7308810343LED17.0096269905
URBA L 84L35 RWET ANT BP CL2 10MMTP60 738810536LED17.0096269969
URBA L 84L35 RWET ANT BP CL2 MLE L7308810536LED17.0096269896
URBA L 84L50 NR ANT BP CL2 10M MTP60 L7312713759LED17.0096269963
URBA L 84L50 NR ANT BP CL2 MLE L73012713759LED17.0096269890
URBA L 84L50 NR ANT HFA CL2 MLE L73012713759LED17.0096269987
URBA L 84L50 PWC ANT BP CL2 MLE L73012713910LED17.0096269912
URBA L 84L50 RC ANT BP CL2 10M MTP60 L7312714049LED17.0096269981
URBA L 84L50 RC ANT BP CL2 MLE L73012714049LED17.0096269908
URBA L 84L50 RWET ANT BP CL2 10MMTP60 7312714310LED17.0096269972
URBA L 84L50 RWET ANT HFX CL2 MLE L73012714310LED17.0096269988
URBA L 84L70 NR ANT BP CL2 10M MTP60 L7317818095LED17.0096269966
URBA L 84L70 NR ANT BP CL2 MLE L73017818095LED17.0096269893
URBA L 84L70 RC ANT BP CL2 10M MTP60 L7317818476LED17.0096269984
URBA L 84L70 RC ANT BP CL2 MLE L73017818476LED17.0096269911
URBA L 84L70 RWET ANT BP CL2 10MMTP60 7317818820LED17.0096269975
URBA L 84L70 RWET ANT BP CL2 MLE L73017818820LED17.0096269902
URBA S 12L35 NR ANT BP CL2 8M MTP60 L730151463LED10.5096269697
URBA S 12L35 NR ANT BP CL2 MLE L730151463LED10.5096269534
URBA S 12L35 PWC ANT BP CL2 8M MTP60 730151479LED10.5096269679
URBA S 12L35 PWC ANT BP CL2 MLE L730151479LED10.5096269579
URBA S 12L35 RWET ANT BP CL2 8MMTP60 730151522LED10.5096269715
URBA S 12L35 RWET ANT BP CL2 MLE L730151522LED10.5096269552
URBA S 12L35 SC ANT BP CL2 8M MTP60 L730151534LED10.5096269733
URBA S 12L35 SC ANT BP CL2 MLE L730151534LED10.5096269570
URBA S 12L35 WR ANT BP CL2 8M MTP60 L730151485LED10.5096269706
URBA S 12L35 WR ANT BP CL2 MLE L730151485LED10.5096269543
URBA S 12L35 WSC ANT BP CL2 8M MTP60 730151465LED10.5096269724
URBA S 12L35 WSC ANT BP CL2 MLE L730151465LED10.5096269561
URBA S 12L50 NR ANT BP CL2 8M MTP60 L730212003LED10.5096269700
URBA S 12L50 NR ANT BP CL2 MLE L730212003LED10.5096269537
URBA S 12L50 PWC ANT BP CL2 8M MTP60 730212025LED10.5096269682
URBA S 12L50 PWC ANT BP CL2 MLE L730212025LED10.5096269582
URBA S 12L50 RWET ANT BP CL2 8MMTP60 730212083LED10.5096269718
URBA S 12L50 RWET ANT BP CL2 MLE L730212083LED10.5096269555
URBA S 12L50 SC ANT BP CL2 8M MTP60 L730212099LED10.5096269736
URBA S 12L50 SC ANT BP CL2 MLE L730212099LED10.5096269573
URBA S 12L50 WR ANT BP CL2 MLE L730212033LED10.5096269546
URBA S 12L50 WSC ANT BP CL2 8M MTP60 730212005LED10.5096269727
URBA S 12L50 WSC ANT BP CL2 MLE L730212005LED10.5096269564
URBA S 12L70 NR ANT BP CL2 MLE L730282670LED10.5096269540
URBA S 12L70 PWC ANT BP CL2 8M MTP60 730282699LED10.5096269685
URBA S 12L70 PWC ANT BP CL2 MLE L730282699LED10.5096269585
URBA S 12L70 RWET ANT BP CL2 8MMTP60 730282777LED10.5096269721
URBA S 12L70 RWET ANT BP CL2 MLE L730282777LED10.5096269558
URBA S 12L70 SC ANT BP CL2 8M MTP60 L730282798LED10.5096269739
URBA S 12L70 SC ANT BP CL2 MLE L730282798LED10.5096269576
URBA S 12L70 WR ANT BP CL2 8M MTP60 L730282710LED10.5096269712
URBA S 12L70 WR ANT BP CL2 MLE L730282710LED10.5096269549
URBA S 12L70 WSC ANT BP CL2 8M MTP60 730282672LED10.5096269730
URBA S 12L70 WSC ANT BP CL2 MLE L730282672LED10.5096269567
URBA S 24L35 NR ANT BP CL2 MLE L730282920LED10.5096269535
URBA S 24L35 NR ANT BP CL2 8M MTP60 L730282920LED10.5096269698
URBA S 24L35 PWC ANT BP CL2 8M MTP60 730282952LED10.5096269680
URBA S 24L35 PWC ANT BP CL2 MLE L730282952LED10.5096269580
URBA S 24L35 RWET ANT BP CL2 8MMTP60 730283037LED10.5096269716
URBA S 24L35 RWET ANT BP CL2 MLE L730283037LED10.5096269553
URBA S 24L35 SC ANT BP CL2 8M MTP60 L730283060LED10.5096269734
URBA S 24L35 SC ANT MD CL2 8M MTP60 L730283060LED10.5096269757
URBA S 24L35 WR ANT BP CL2 8M MTP60 L730282964LED10.5096269707
URBA S 24L35 WR ANT BP CL2 MLE L730282964LED10.5096269544
URBA S 24L35 WSC ANT BP CL2 8M MTP60 730282923LED10.5096269725
URBA S 24L35 WSC ANT BP CL2 MLE L730282923LED10.5096269562
URBA S 24L50 NR ANT BP CL2 MLE L730383990LED10.5096269538
URBA S 24L50 PWC ANT BP CL2 8M MTP60 730384034LED10.5096269683
URBA S 24L50 PWC ANT BP CL2 MLE L730384034LED10.5096269583
URBA S 24L50 RWET ANT BP CL2 8MMTP60 730384150LED10.5096269719
URBA S 24L50 RWET ANT BP CL2 MLE L730384150LED10.5096269556
URBA S 24L50 SC ANT BP CL2 8M MTP60 L730384182LED10.5096269737
URBA S 24L50 SC ANT BP CL2 MLE L730384182LED10.5096269574
URBA S 24L50 WR ANT BP CL2 8M MTP60 L730384050LED10.5096269710
URBA S 24L50 WR ANT BP CL2 MLE L730384050LED10.5096269547
URBA S 24L50 WSC ANT BP CL2 8M MTP60 730383994LED10.5096269728
URBA S 24L50 WSC ANT BP CL2 MLE L730383994LED10.5096269565
URBA S 24L70 NR ANT BP CL2 MLE L730535304LED10.5096269541
URBA S 24L70 NR ANT BP CL2 8M MTP60 L730535304LED10.5096269704
URBA S 24L70 PWC ANT BP CL2 8M MTP60 730535362LED10.5096269686
URBA S 24L70 PWC ANT BP CL2 MLE L730535362LED10.5096269586
URBA S 24L70 RWET ANT BP CL2 8MMTP60 730535517LED10.5096269722
URBA S 24L70 RWET ANT BP CL2 MLE L730535517LED10.5096269559
URBA S 24L70 SC ANT BP CL2 8M MTP60 L730535559LED10.5096269740
URBA S 24L70 SC ANT BP CL2 MLE L730535559LED10.5096269577
URBA S 24L70 WR ANT BP CL2 8M MTP60 L730535384LED10.5096269713
URBA S 24L70 WSC ANT BP CL2 8M MTP60 730535309LED10.5096269731
URBA S 24L70 WSC ANT BP CL2 MLE L730535309LED10.5096269568
URBA S 36L35 NR ANT BP CL2 MLE L730394363LED10.5096269536
URBA S 36L35 NR ANT BP CL2 8M MTP60 L730394363LED10.5096269699
URBA S 36L35 PWC ANT BP CL2 8M MTP60 730394411LED10.5096269681
URBA S 36L35 PWC ANT BP CL2 MLE L730394411LED10.5096269581
URBA S 36L35 RWET ANT BP CL2 8MMTP60 730394538LED10.5096269717
URBA S 36L35 RWET ANT BP CL2 MLE L730394538LED10.5096269554
URBA S 36L35 SC ANT BP CL2 8M MTP60 L730394573LED10.5096269735
URBA S 36L35 SC ANT BP CL2 MLE L730394573LED10.5096269572
URBA S 36L35 WR ANT BP CL2 MLE L730394429LED10.5096269545
URBA S 36L35 WSC ANT BP CL2 8M MTP60 730394367LED10.5096269726
URBA S 36L35 WSC ANT BP CL2 MLE L730394367LED10.5096269563
URBA S 36L50 NR ANT BP CL2 MLE L730555948LED10.5096269539
URBA S 36L50 NR ANT BP CL2 8M MTP60 L730555948LED10.5096269702
URBA S 36L50 NR ANT HFA CL2 MLE L730555948LED10.5096269753
URBA S 36L50 PWC ANT BP CL2 8M MTP60 730556013LED10.5096269684
URBA S 36L50 PWC ANT BP CL2 MLE L730556013LED10.5096269584
URBA S 36L50 RWET ANT BP CL2 8MMTP60 730556186LED10.5096269720
URBA S 36L50 RWET ANT BP CL2 MLE L730556186LED10.5096269557
URBA S 36L50 SC ANT BP CL2 8M MTP60 L730556233LED10.5096269738
URBA S 36L50 SC ANT BP CL2 MLE L730556233LED10.5096269575
URBA S 36L50 WR ANT BP CL2 8M MTP60 L730556037LED10.5096269711
URBA S 36L50 WR ANT BP CL2 MLE L730556037LED10.5096269548
URBA S 36L50 WSC ANT BP CL2 8M MTP60 730555954LED10.5096269729
URBA S 36L50 WSC ANT BP CL2 MLE L730555954LED10.5096269566
URBA S 36L70 NR ANT BP CL2 MLE L730777872LED10.5096269542
URBA S 36L70 NR ANT BP CL2 8M MTP60 L730777872LED10.5096269705
URBA S 36L70 PWC ANT BP CL2 8M MTP60 730777958LED10.5096269687
URBA S 36L70 PWC ANT BP CL2 MLE L730777958LED10.5096269587
URBA S 36L70 RWET ANT BP CL2 8MMTP60 730778187LED10.5096269723
URBA S 36L70 RWET ANT BP CL2 MLE L730778187LED10.5096269560
URBA S 36L70 SC ANT BP CL2 MLE L730778249LED10.5096269578
URBA S 36L70 WR ANT BP CL2 8M MTP60 L730777990LED10.5096269714
URBA S 36L70 WR ANT BP CL2 MLE L730777990LED10.5096269551
URBA S 36L70 WSC ANT BP CL2 8M MTP60 730777879LED10.5096269732
URBA S 36L70 WSC ANT BP CL2 MLE L730777879LED10.5096269569
