Dyana

  • Dyana
  • Dyana

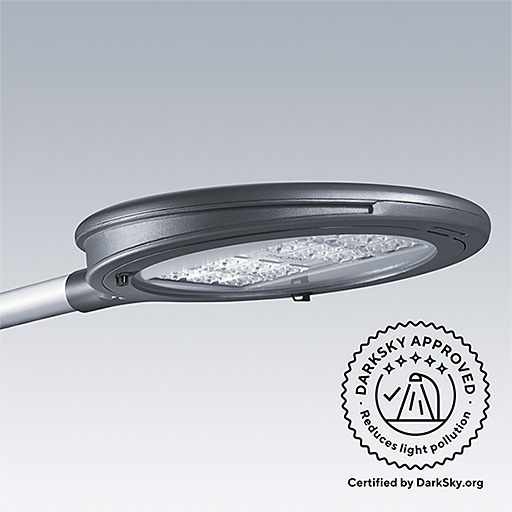

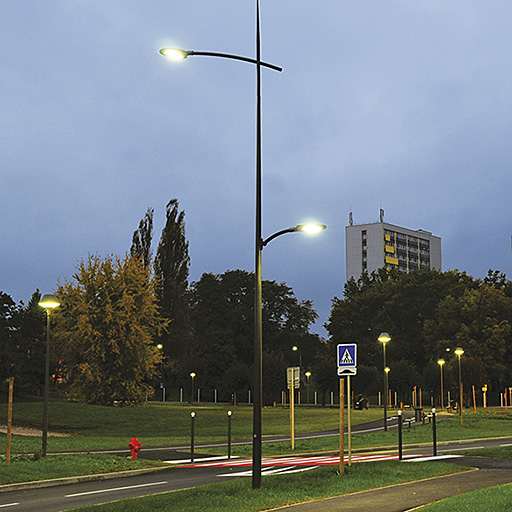

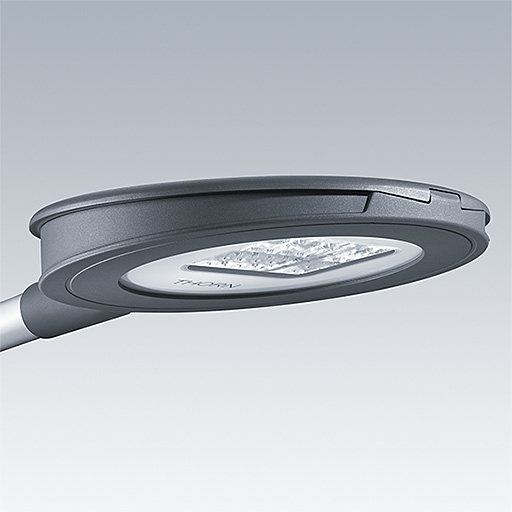

A high quality LED luminaire to enchance efficiently urban roads and streets up to Me2

  • Flexibility of use: 13 lumen outputs (up to 21500 lm), top or lateral mountings and two optics to cover a wide range of lighting projects from S to Me2 classes
  • High performance Thorn R-PEC road and street lighting LED optic with high efficiency (up to 150 lm/W)
  • Durable IP66 and IK10 luminaire made of high quality die-cast aluminium
  • Coordinated with new brackets and columns for a full harmonised architectural project

Materials and Finish

Body, spigot and canopy: die-cast aluminium (EN AC-47100), power coating textured dark grey finish. Standard corrosion class: C3. Standard corrosion class C5 according to ISO 9223: 2012.
Flat glass cover: 5mm thick toughened glass.
Gasket: Ethylene Propylene Diamine rubber (EPDM).

Installation and Mounting

Optimised narrow road (NR) and wide street (WS) optic for good control and comfort. Dedicated range of Dyana (Thorn range) columns and brackets.
Side entry mounting Ø 60mm, tilt = 0°, -5°. Post top mounting Ø 60mm and Ø 76mm as standard, tilt 5°, 10°. End cap secured by 2 screws.
Slim section only 92mm thick. Opening from above. Supplied complete and ready to install, in a single box. Weight: 12 kg max.
Supplied complete and ready to install, in a single box. Weight: 15kg max. Option for Ø 76 mm mounting with spigot accessory.

Specification

To specify state:
IP 66 aluminium decorative streetlighting lantern in 2 sizes. Side entry and top mountings, 60mm and 76mm diameters options of tiltings. With options for dimming, CLO (constant light output) and presence detection.
As Thorn Dyana LED.

New Product
LumExpress Product
eControl Product

▼ Dyana LED, Size 1

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
DYANA LED 12L70 NR 740 CL2 MLE60273521LED10.8196261124
DYANA LED 24L70 NR 730 CL2 MLE60526389LED10.8496269046
DYANA LED 24L70 NR 730 CLO CL2 MLE60526389LED11.3096269048
DYANA LED 24L70 NR 740 CL2 MLE60526988LED10.8496261125
DYANA LED 36L100 NR 740 CL1 MLE6011411490LED11.6096264391
DYANA LED 36L100 NR 740 CL1 MLE60 PM11411490LED11.7096264393
DYANA LED 36L100 NR 740 CL2 MLE6011411490LED11.6096264389
DYANA LED 36L35 NR 730 CLO CL2 MA76 7M385168LED11.5096263828
DYANA LED 36L50 NR 740 CL1 HT MLE60547768LED11.7096263154
DYANA LED 36L50 NR 740 CL2 HT MLE60547768LED11.6096263153
DYANA LED 36L70 NR 730 CL2 MLE60769496LED10.8596269043
DYANA LED 36L70 NR 730 CLO CL2 MLE60769496LED11.4096269045
DYANA LED 36L70 NR 740 CL2 MLE607610386LED10.8596261126
DYANA LED 48L70 NR 740 CL2 MLE6010113801LED12.1096269041
DYANA LED 60L70 NR 740 CL1 MLE6012517126LED12.2096264403
DYANA LED 60L70 NR 740 CL2 MLE6012517126LED12.1096264401

▼ Dyana LED, Bi-power, size 1

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
DYA 12L70-740 NR BP 3550 CL1 L60E ANT273521LED10.8496261027
DYA 12L70-740 NR BP 3550 CL2 L60E ANT273521LED10.8196261003
DYA 24L70-740 NR BP 3550 CL1 L60E ANT526988LED10.8796261028
DYA 24L70-740 NR BP 3550 CL2 L60E ANT526988LED10.8496260745
DYA 36L70-740 NR BP 3550 CL1 L60E ANT7610386LED9.4696261029
DYA 36L70-740 NR BP 3550 CL2 L60E ANT7610386LED10.8596260746
DYA 48L70-740 NR BP 3550 CL2 L60E ANT10113801LED12.1096269040
DYA 60L70-740 NR BP 3550 CL1 L60E ANT12517126LED12.2096264402
DYANA LED 12L70 NR 740 BP CL1 MA76273521LED10.2496263159
DYANA LED 12L70 NR 740 BP CL1 MA76 PM273521LED10.3096263162
DYANA LED 12L70 NR 740 BP CL1 MLE60 PM273521LED10.9096261127
DYANA LED 12L70 NR 740 BP CL2 MA76 7M273521LED11.6696261021
DYANA LED 12L70 NR 740 BP CL2 MLE60 7M273521LED11.5896261015
DYANA LED 24L70 NR 730 BP CL2 MLE60526389LED10.8496269047
DYANA LED 24L70 NR 740 BP CL1 MA76526988LED10.2796263160
DYANA LED 24L70 NR 740 BP CL1 MA76 PM526988LED10.3396263163
DYANA LED 24L70 NR 740 BP CL1 MLE60 PM526988LED10.9396261128
DYANA LED 24L70 NR 740 BP CL2 MA76 7M526988LED11.6996261022
DYANA LED 24L70 NR 740 BP CL2 MLE60 7M526988LED11.6196261016
DYANA LED 36L100 NR 740 BP CL1 MA7611411490LED11.7096264394
DYANA LED 36L100 NR 740 BP CL1 MLE6011411490LED11.6096264390
DYANA LED 36L100 NR 740 BP CL1 MLE60 PM11411490LED11.7096264392
DYANA LED 36L100 NR 740 BP CL2 MA76 7M11411490LED11.7096264397
DYANA LED 36L100 NR 740 BP CL2 MLE6011411490LED11.6096264388
DYANA LED 36L100 NR 740 BP CL2 MLE60 7M11411490LED11.6096264396
DYANA LED 36L100 NR 740 CL1 MA76 PM11411490LED11.8096264395
DYANA LED 36L100 NR 740 CL2 MTP60 8M11411490LED11.4096264398
DYANA LED 36L35 NR 740 BP CL2 MTP 8M385653LED11.7296261130
DYANA LED 36L50 NR 740 BP CL1 HT MLE60547768LED11.7096263156
DYANA LED 36L50 NR 740 BP CL2 HT MLE60547768LED11.6096263155
DYANA LED 36L50 NR 740 BP CL2 MTP60 8M547768LED11.7296261131
DYANA LED 36L70 NR 730 BP CL2 MLE60769496LED10.8596269044
DYANA LED 36L70 NR 740 BP CL1 MA767610386LED10.2896263161
DYANA LED 36L70 NR 740 BP CL1 MA76 PM7610386LED10.3496263164
DYANA LED 36L70 NR 740 BP CL1 MLE60 PM7610386LED10.9496261129
DYANA LED 36L70 NR 740 BP CL2 MA76 7M7610386LED11.7096261023
DYANA LED 36L70 NR 740 BP CL2 MLE60 7M7610386LED11.6296261017
DYANA LED 36L70 NR 740 BP CL2 MTP60 8M7610386LED11.7296261132
DYANA LED 60L70 NR 740 BP CL1 MA7612517126LED12.2096264406
DYANA LED 60L70 NR 740 BP CL2 MA76 7M12517126LED12.2096264409
DYANA LED 60L70 NR 740 BP CL2 MLE60 7M12517126LED12.1096264408
DYANA LED 60L70 NR 740 BP CL2 MTP60 8M12517126LED12.0096264410

▼ Brackets

Description   Wt (kg)SAP Code
SATYS2 1xBRA 0,8 MTP D60 ANT10.3096264454
SATYS2 MWA 0,4 ANT2.4096264458

▼ Column packages

Description   Wt (kg)SAP Code
SATYS2 COL 8M 1xBRA 1,2 D60 ANT80.0096264464
SATYS2 COL 8M 1xBRA 1,2 D60 MWA ANT86.0096264466
SATYS2 COL 8M 2xBRA 1,2 D60 ANT85.0096264465
SATYS2 COL 9M 2xBRA 1,2 D60 ANT95.0096264468
