Dyana / <SATYS2 COL 8M 1xBRA 1,2 D60 ANT


Data Sheet

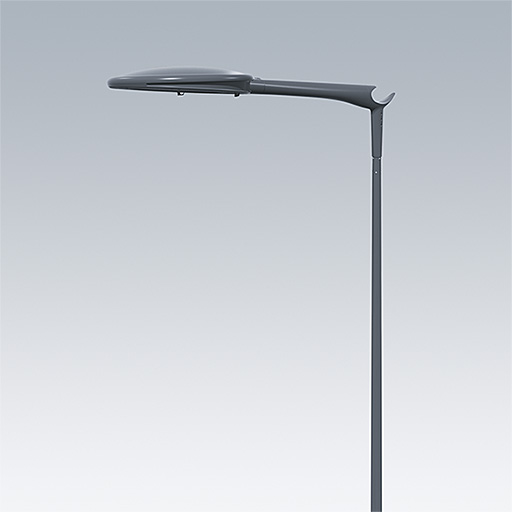

A decorative bracket and column package: 8000mm galvanised steel column with Single die-cast aluminium top-mounted bracket(s) for Ø60mm Dyana luminaires. Outreach: 1200mm. Standard finish in sandy grey (similar to RAL 9007). Alternative RAL colours available on request.

Recommended for Dyana Size 1 and Size 2 luminaires. Flange mountings: 300x300 with 2 rows of 4 screws 100mm spacing. Delivered with anchoring bolts.

Dimensions: Ø60 x 8000 mm
Weight: 80 kg
Scx: m
