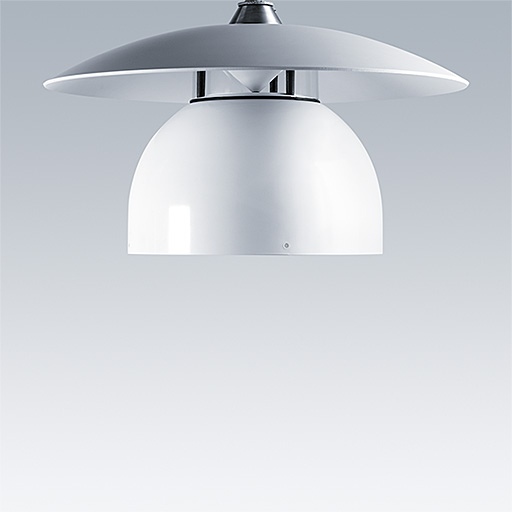

Victoria

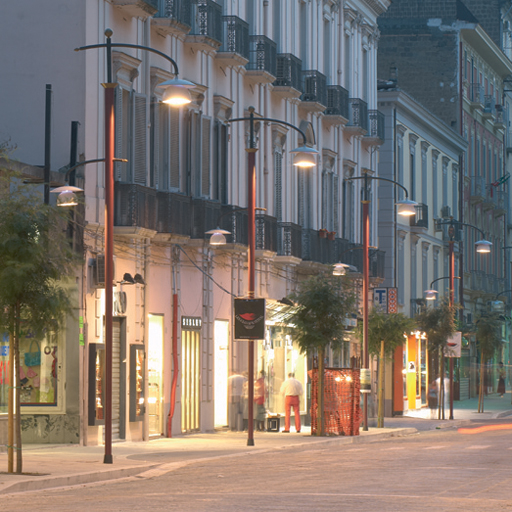

Street and urban lantern combining advanced performance with aesthetics through the use of an illuminated canopy
- IP65 seal ensures long life of components and through life performance
- Efficient lamp packages and dimming options for immediate energy savings
- Features for fast maintenance and installation, plus 'twist and lock' hinge for easy access to components
- Choice of fixings for post-top or side entry mounting
Materials and Finish
Body: aluminium powder coated NCS0500 (White)
Canopy: ABS white
Spigot: corrosion protected steel
Enclosure: 4mm clear toughened glass
Screws and clips: stainless steel
(EN AC-44300).
Standard corrosion class C5 according to ISO 9223: 2012.
Installation and Mounting
Mounting spigot of female 3/4" pipe thread type (for Ø27G male threaded tube). Large choice of fixings for post-top or side entry (see Columns section of the catalogue). Cable gland for Ø6mm to Ø13mm cable. Access from below to gear and optic system after quick release of the hinged glass enclosure via 'twist and lock' design. Automatic disconnection of the electrical mains when opening. Mounting plate with optics and ballast has hinge suspension and stays attached when released. Tool free connection to 2x2.5mm² terminal. Complete with wired 8m (W8) or 10m (W10) cable.
Specification
To specify state:
Full IP66 aluminium street and amenity lighting luminaire with distinctive illuminated canopy. For 35W to 150W lamps and 1800lm to 7500lm LED modules. Female spigot mounting onto Ø27G tube. Automatic disconnection at opening and tool free access to and removal of lamp and gear tray. With options for electronic gears, dimming and lighting management system.
As Thorn Victoria
▼ Victoria, Narrow road optic
▼ Victoria Canopies
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| VICIA1 CANOPY (R9006) | 1.60 | 96187043 | |||||||
| VICIA1 CANOPY R9005 | 2.00 | 96632796 | |||||||
| VICIA1 CANOPY R9016 | 2.00 | 96632795 | |||||||
| VICIA2 CANOPY (R9006) | 2.30 | 96187297 | |||||||
| VICIA2 CANOPY R9005 | 2.00 | 96278845 | |||||||
| VICIA2 CANOPY R9016 | 2.00 | 96278844 |
▼ Victoria Accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| POLE BRACKET TYPE 100 L=420 | 2.40 | 96185585 | |||||||
| POLE BRACKET TYPE 72B L=800 | 3.80 | 96185584 | |||||||
| VICTOR 7403B SEMI HOOK | 2.30 | 96006748 | |||||||
| VICTOR BRACKET FOR ARM 48MM | 0.80 | 96186717 | |||||||
| VICTOR BRACKET FOR ARM 60MM | 1.30 | 96187212 | |||||||
| VICTOR HOOK R230 | 3.90 | 96006749 | |||||||
| VICTOR HOOK R295 | 4.60 | 96187415 | |||||||
| VICTOR SEMI HOOK 7401B R230 | 2.30 | 96006741 | |||||||
| VICTOR WIRE SUSPENSION WITH ADAPTOR | 2.20 | 96006751 | |||||||
| WALL BRACKET FOR HOOK OR SEMI HOOK GRY | 1.60 | 96006750 |
