Victoria / VICIA1 36L35-740 NR BP 3550 HFX CL2 ->


Data Sheet

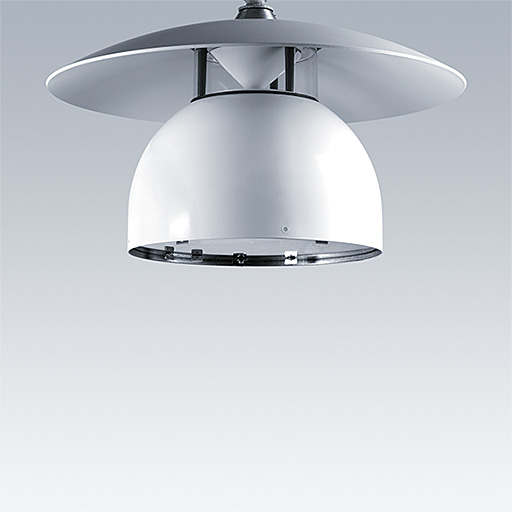

A small size LED street and urban luminaire, in a modern and timeless design. 36 LEDs driven at 350mA with Narrow Road optic. DALI dimmable LED driver. Class II electrical, IP65. Body in aluminium, powder coated Traffic white RAL9016. Enclosure: toughened flat glass. Luminaire to be suspended using brackets (Ø27G), post top, or wall mounted. Tool-free electrical connection via 2 x 2.5 mm² terminal block. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. Pre-wired with 8m, 4 core cable. Complete with 4000K LED

Must be used in conjunction with a canopy (see Victoria Canopies section), to be ordered separately.

Dimensions: Ø605 x 355 mm
Luminaire input power: 44.3 W
Weight: 5.66 kg
Scx: 0.144 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6344 lm
  • Luminaire efficacy*:143 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003161 LCO 60/200-1050/100 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:44.3 W
  • Dimming:DaliDim
  • LED
  • CE
  • GLedReP
  • IK08
  • IP65
  • LLedReP
  • RCM
  • SC2 - Protection Class 2
