Thor
Projects
City of Oslo, Norway

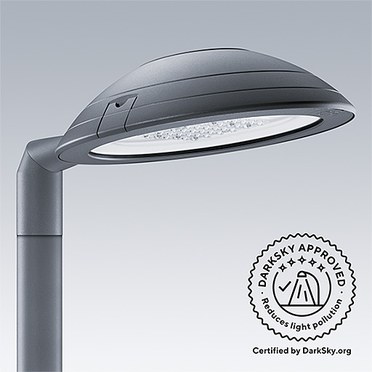

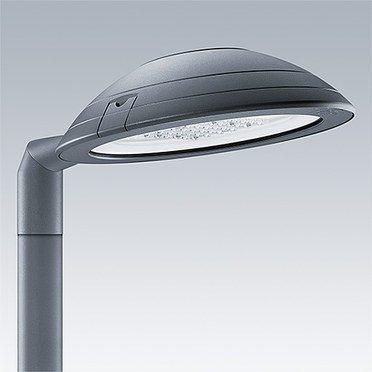

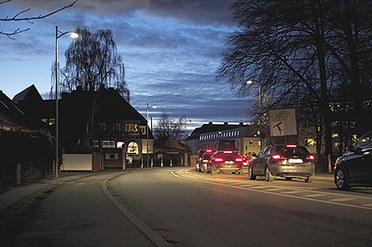

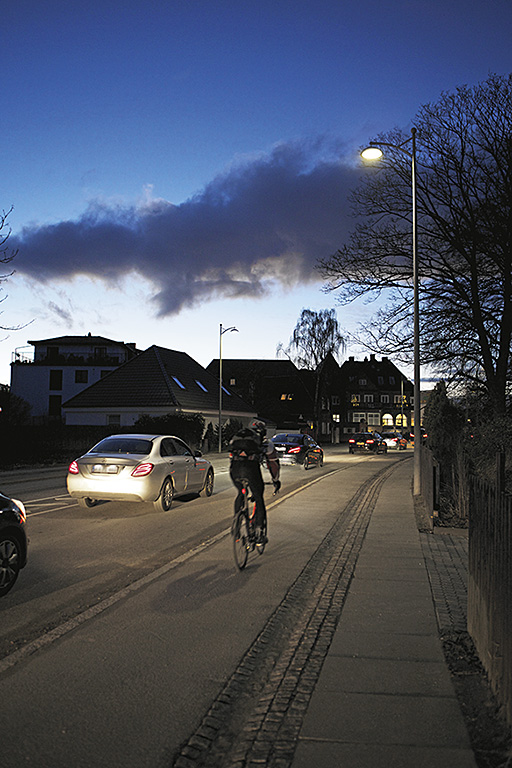

Road Lighting Solution for CopenhagenAn LED smart urban lantern providing high user comfort and easy integration of connectivity and sensors into city environments
- High lighting quality creates a comfortable ambience
- Designed around the high performance R-PEC light engine, ensuring an excellent balance between performance and comfort
- Wide choice of control options with a discreet RF variant
- Flexible mounting options extend the scope of application
Materials and Finish
Dome, 2 options : UV stabilized polycarbonate with dark sandy grey finish, close to RAL7043 or opal finish.
Glass: 4mm thick toughened flat glass
Bracket: die cast aluminium (AS12U, LM6 equivalent, EN AC-44300) treated against corrosion and powder coated dark sandy grey (close to RAL7043).
Body: die cast aluminium (AS12U, LM6 equivalent, EN AC-44300) treated against corrosion and powder coated dark sandy grey (close to RAL7043).
Ring: die cast aluminium (AS12U, LM6 equivalent, EN AC-44300) treated against corrosion and powder coated dark sandy grey (close to RAL7043).
Reflector: ABS white with UV treatment
Screws and closing set: Stainless steel
Installation and Mounting
Recommended mounting height: 6m to 8m. All versions are pre-wired with 9m cable. Supplied complete and ready to install, in a single box. Weight: 15,2kg max. Suitable for both post top and side entry mounting Ø60mm as standard. Side mounting: Ø60mm x 100mm long spigot, tilting -15° max, secured by 2 screws, delivered tilted at 0° by default. Top mounting: Ø60mm spigot, tilting +10° max, secured by 2 stainless steel screws, delivered tilted at 0° by default. Access from above. Optimised narrow road (NR), wet road (R-WET) and street comfort (SC) optics for good control and performance. Catenary and suspended versions fixed through 27G, adaptor for 34G (available on request) Ø48 mm lateral and post top versions (external Ø60mm, internal Ø48mm), available on request.
Specification
To specify state:
IP66 durable urban LED lantern with 2 finishes (full dome or opal dome). Luminaire flux up to 13 500 Llm. Efficiency up to 126 Llm/W. Ø60mm side entry, and post top mountings, as standard. Tilting from -15° to +10°. NR, RWET and SC R-PEC optics. CLO, bi-power, DALI and Radio Frequency (RF) as standard. Ø48mm lateral, Ø48mm post top mountings, catenary and suspended versions on request. Compatible with a wide range of intelligent lighting controls.
As Thorn Thor L.
- New Product
▼ Thor L Narrow road optic, full dome
▼ Thor L Narrow road optic, opal dome
▼ Thor L Narrow road optic, configured products
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR L 48L50-740 NR BP CL2 RF FD 9M MTP | 72 | 9072 | LED | 13.90 | 96643973 | ||||
| THOR L 72L50-740 NR BP CL2 RF FD 9M MLE | 108 | 13449 | LED | 14.80 | 96643974 |
▼ Thor L Wet road optic, full dome
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR L 48L50-730 RWET BP CL2 FD 9M MLE | 72 | 8312 | LED | 13.90 | 96643957 | ||||
| THOR L 48L50-730 RWET BP CL2 FD 9M MTP | 72 | 8312 | LED | 13.90 | 96643937 | ||||
| THOR L 48L50-740 RWET BP CL2 FD 9M MLE | 72 | 9147 | LED | 13.90 | 96643954 | ||||
| THOR L 48L50-740 RWET BP CL2 FD 9M MTP | 72 | 9147 | LED | 13.90 | 96643934 | ||||
| THOR L 72L50-730 RWET BP CL2 FD 9M MLE | 108 | 12363 | LED | 14.80 | 96643967 | ||||
| THOR L 72L50-730 RWET BP CL2 FD 9M MTP | 108 | 12363 | LED | 14.80 | 96643947 | ||||
| THOR L 72L50-740 RWET BP CL2 FD 9M MLE | 108 | 13604 | LED | 14.80 | 96643964 | ||||
| THOR L 72L50-740 RWET BP CL2 FD 9M MTP | 108 | 13604 | LED | 14.80 | 96643944 |
▼ Thor L Wet road optic, opal dome
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR L 48L50-730 RWET BP CL2 OP 9M MLE | 72 | 8312 | LED | 14.20 | 96643917 | ||||
| THOR L 48L50-730 RWET BP CL2 OP 9M MTP | 72 | 8312 | LED | 14.20 | 96643897 | ||||
| THOR L 48L50-740 RWET BP CL2 OP 9M MLE | 72 | 9147 | LED | 14.20 | 96643914 | ||||
| THOR L 48L50-740 RWET BP CL2 OP 9M MTP | 72 | 9147 | LED | 14.20 | 96643894 | ||||
| THOR L 72L50-730 RWET BP CL2 OP 9M MLE | 108 | 12363 | LED | 14.60 | 96643927 | ||||
| THOR L 72L50-730 RWET BP CL2 OP 9M MTP | 108 | 12363 | LED | 14.60 | 96643907 | ||||
| THOR L 72L50-740 RWET BP CL2 OP 9M MLE | 108 | 13604 | LED | 14.60 | 96643924 | ||||
| THOR L 72L50-740 RWET BP CL2 OP 9M MTP | 108 | 13604 | LED | 14.60 | 96643904 |
▼ Thor L Wet road optic, configured products
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR L 48L50-740 RWET BP CL2 RF FD 9MMTP | 72 | 9147 | LED | 13.90 | 96643975 | ||||
| THOR L 72L50-740 RWET BP CL2 RF FD 9MMLE | 108 | 13604 | LED | 14.80 | 96643976 |
▼ Thor L Street comfort optic, full dome
▼ Thor L Street comfort optic, opal dome
▼ Thor S Narrow road optic, full dome
▼ Thor S Wet road optic, full dome
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR S 36L50-730 RWET BPS CL2 FD 6M MLE | 55 | 6405 | LED | 10.00 | 96665292 | ||||
| THOR S 36L50-730 RWET BPS CL2 FD 6M MTP | 55 | 6405 | LED | 10.00 | 96665252 | ||||
| THOR S 36L50-740 RWET BPS CL2 FD 6M MLE | 55 | 7048 | LED | 10.00 | 96665293 | ||||
| THOR S 36L50-740 RWET BPS CL2 FD 6M MTP | 55 | 7048 | LED | 10.00 | 96665253 | ||||
| THOR S 36L70-730 RWET BPS CL2 FD 6M MLE | 77 | 8447 | LED | 10.00 | 96665307 | ||||
| THOR S 36L70-730 RWET BPS CL2 FD 6M MTP | 77 | 8447 | LED | 10.00 | 96665267 | ||||
| THOR S 36L70-740 RWET BPS CL2 FD 6M MLE | 77 | 9295 | LED | 10.00 | 96665308 | ||||
| THOR S 36L70-740 RWET BPS CL2 FD 6M MTP | 77 | 9295 | LED | 10.00 | 96665268 |
▼ Thor S Street comfort optic, full dome
▼ Thor S Street comfort optic, configured products
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR S 36L50-740 SC CL2 LRT FD 6M MLE | 55 | 6923 | LED | 10.00 | 96665298 | ||||
| THOR S 36L50-740 SC CL2 LRT FD 6M MTP | 55 | 6923 | LED | 10.00 | 96665258 | ||||
| THOR S 36L50-740 SC CL2 LRT FD MSU34G | 55 | 6923 | LED | 8.20 | 96665359 | ||||
| THOR S 36L70-740 SC CL2 LRT FD 6M MLE | 77 | 9129 | LED | 10.00 | 96665313 | ||||
| THOR S 36L70-740 SC CL2 LRT FD 6M MTP | 77 | 9129 | LED | 10.00 | 96665273 | ||||
| THOR S 36L70-740 SC CL2 LRT FD MSU34G | 77 | 9129 | LED | 8.20 | 96665362 |
▼ Thor S Wide street optic, full dome
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR S 24L105-730 WS-S BPS CL2 FD MCA | 79 | 7539 | LED | 8.60 | 96665350 | ||||
| THOR S 24L105-740 WS-S BPS CL1 FD MCA | 79 | 8296 | LED | 8.60 | 96665355 | ||||
| THOR S 24L105-740 WS-S BPS CL2 FD MCA | 79 | 8296 | LED | 8.60 | 96665351 |
▼ Thor S Wide street optic, configured products
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| THOR S 24L105-740 WS-S CL2 LRT FD MCA | 79 | 8296 | LED | 8.60 | 96665352 |
